Stainless Steel 904L Forged Fittings

Stainless Steel 904L Forged Fittings

What are Stainless Steel 904L forged fittings?
Stainless Steel 904L forged fittings are components used for joining or connecting pipes in a piping system. These fittings are manufactured through a forging process, where the metal is heated and shaped under high pressure. The forging process enhances the mechanical properties of the fittings, making them stronger and more reliable. Stainless Steel 904L forged fittings are designed specifically for use with Stainless Steel 904L pipes and offer excellent corrosion resistance and durability.

What types of forged fittings are available in Stainless Steel 904L?
Stainless Steel 904L forged fittings are available in various types, including:
1. Stainless Steel 904L Union: A union is a type of fitting that allows for easy disconnection and reconnection of pipes. It consists of three parts: a nut, a female end, and a male end.
2. Stainless Steel 904L Couplings: Couplings are used to connect two pipes of the same diameter. They are available in socket weld or threaded options.
3. Stainless Steel 904L Elbows: Elbows are used to change the direction of the pipe. They come in various angles, such as 45 degrees or 90 degrees, to suit different piping configurations.
4. Stainless Steel 904L Tees: Tees are used to create a branch in a piping system. They have one inlet and two outlets, allowing for the flow of fluids in multiple directions.
5. Stainless Steel 904L Crosses: Crosses are similar to tees but have four outlets instead of two. They are used when a piping system requires multiple branches.

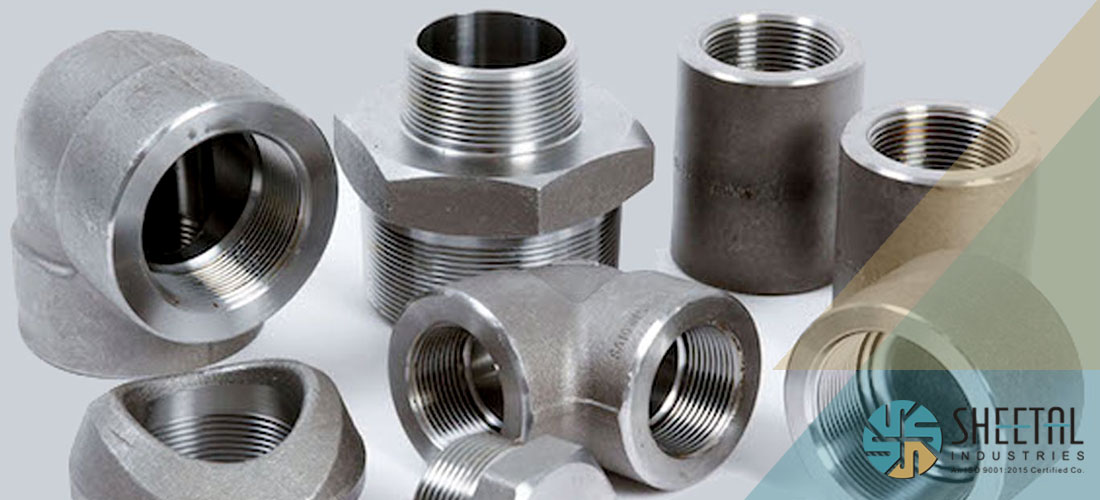

904L Stainless Steel Forged Fittings

What are the advantages of Stainless Steel 904L forged fittings?
Some advantages of Stainless Steel 904L forged fittings include:
1. Corrosion resistance: Stainless Steel 904L offers excellent resistance to corrosion in various aggressive environments, including sulfuric acid, phosphoric acid, and chloride solutions.
2. High strength: The forging process enhances the mechanical properties of the fittings, making them stronger and more durable than cast fittings.
3. Leak-free connections: Stainless Steel 904L forged fittings, when properly installed, provide tight and reliable connections, minimizing the risk of leaks.
4. Temperature resistance: Stainless Steel 904L can withstand high temperatures, making it suitable for applications involving elevated temperatures.
5. Versatility: Stainless Steel 904L forged fittings are suitable for a wide range of applications, including chemical processing, oil and gas industry, pharmaceuticals, and more.

Manufacturing Process Of Stainless Steel 904L Forged Fittings

Specification Of SS 904L Forged Fittings

Specifications ASTM A182 / ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Stainless Steel 904L Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Chemical Composition of SS 904L Forged Fittings

Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.0 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 23.00 – 28.00 1.00 – 2.00

Mechanical Properties of SS 904L Forged Fittings

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

Types Of Stainless Steel 904L High Pressure Forged Fittings

904L SS 90 Degree Forged Elbow

904L SS 90 Degree Forged Elbow

904L SS 45 Degree Forged Elbow

904L SS 45 Degree Forged Elbow

904L Stainless Steel Full Coupling

904L SS Full Coupling

904L Stainless Steel Half Coupling

904L Stainless Steel Half Coupling

904L Stainless Steel Forged Tee

904L Stainless Steel Forged Tee

904L Stainless Steel Forged Cross

904L Stainless Steel Forged Cross

SS 904L Threaded End Cap

SS 904L Threaded End Cap

904L Stainless Steel Threaded Union

904L Stainless Steel Threaded Union

Stainless Steel 904L Bushing

Stainless Steel 904L Bushing

Stainless Steel 904L Street elbow

Stainless Steel 904L Street elbow

Stainless Steel 904L Plug

Stainless Steel 904L Plug

SS 904L Barrel Nipple

SS 904L Barrel Nipple

Other Types Of Stainless Steel 904L Forged Pipe Fittings

  • 904L Stainless Steel Socket Weld Fittings
  • 904L Stainless Steel Couplings
  • 904L Stainless Steel Hex Head Plug
  • 904L Stainless Steel Screwed Fittings
  • 904L Stainless Steel Hex Head Bushing
  • SS 904L High Pressure Forged Fittings
  • ASTM A182 F904L Stainless Steel SW Fittings
  • Stainless Steel 904L NPT Fittings
  • SS 904L Scoket weld Elbow
  • Stainless Steel 904L Threaded Elbow
  • 904L Stainless Steel Threaded Fittings
  • SS 904L Threaded Fittings
  • ASME B16.11 SS 904L 90 Degree Threaded Elbow
  • UNS N08904 Forged Fittings
  • Stainless Steel 904L Reducer Insert
  • 904L Stainless Steel Union
  • 4 Inch SS 904L NPT Threaded Tee
  • 904L Stainless Steel Threaded Adapter
  • SS 904L Reducing Coupling
  • 1.4539 Forged Equal Cross
  • 904L Stainless Steel Forged Pipe Fittings
  • Stainless Steel 904L 1/2 SW Half Coupling
  • SS 904L Threaded Pipe Nipple
  • ASTM A182 SS 904L Threaded 45 Deg Elbow
  • Stainless Steel 904L Welding Boss
  • 904L SS Class 6000 Socket Weld Fittings
  • SS 904L 3000 LB Socket Weld Fittings
  • ASME SA182 904L Stainless Steel Forged Cap

Ask Free Sample of SS 904L Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com

Contact Us

UNS N08904 Forged Fittings Price, Dimension, Weight
