Stainless Steel 317L Forged Fittings

Stainless Steel 317L Forged Fittings

• What is the difference between Stainless Steel 317 and 317L?
The main difference between Stainless Steel 317 and 317L is the carbon content. Stainless Steel 317L has a lower carbon content than Stainless Steel 317, which improves its weldability and makes it less prone to sensitization. This makes 317L suitable for welding applications where post-weld sensitization is a concern.

• What are the temperature limitations of Stainless Steel 317/317L Forged Fittings?
Stainless Steel 317/317L Forged Fittings can operate effectively in a wide temperature range. They can withstand temperatures up to 1700°F (927°C) for intermittent service and up to 1500°F (816°C) for continuous service.

• Are Stainless Steel 317/317L Forged Fittings resistant to corrosion?
Stainless Steel 317/317L Forged Fittings offer excellent corrosion resistance. They exhibit good resistance to general corrosion, pitting, and crevice corrosion in various corrosive environments, including acidic and chloride-containing environments.

• What is the difference between socket weld and threaded fittings?
The main difference between socket weld and threaded fittings lies in their method of connection. Socket weld fittings are welded into place using fillet welds, while threaded fittings have male and female threads that are screwed together to create a tight connection. Socket weld fittings are generally used for higher-pressure applications, while threaded fittings are suitable for lower-pressure applications.

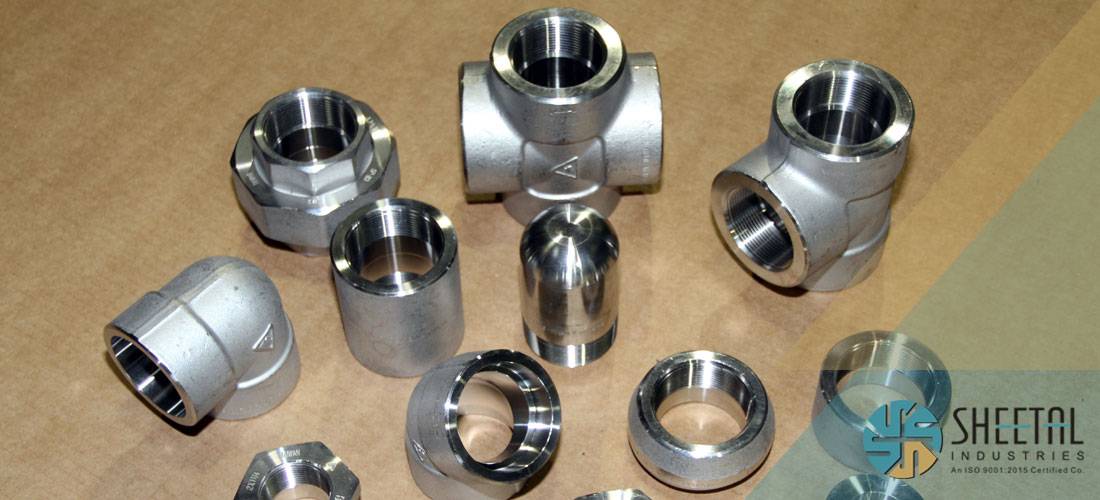

317 Stainless Steel Forged Fittings

• What are the standards and specifications for Stainless Steel 317/317L Forged Fittings?
Stainless Steel 317/317L Forged Fittings are typically manufactured according to industry standards such as ASTM A182 and ASME B16.11. These standards ensure the fittings meet the required quality and dimensional specifications.

• What are the available sizes and pressure ratings for Stainless Steel 317/317L Forged Fittings?
Stainless Steel 317/317L Forged Fittings are available in various sizes and pressure ratings, ranging from 1/8" to 4" for socket weld fittings and 1/8" to 6" for threaded fittings. The pressure ratings typically conform to ANSI/ASME B16.11 standards.

Manufacturing Process Of Stainless Steel 317 Forged Fittings

Specification Of SS 317L Forged Fittings

Specifications ASTM A182 / ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Stainless Steel 317 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317 1.4449 S31700 SUS 317
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

Chemical Composition of SS 317L Forged Fittings

Grade C Mn Si P S Cr Mo Ni Fe
SS 317 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 – 20.00 3.00 – 4.00 11.00 – 15.00 57.845 min
SS 317L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 – 20.00 3.00 – 4.00 11.00 – 15.00 57.89 min

Mechanical Properties of SS 317 Forged Fittings

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Types Of Stainless Steel 317 High Pressure Forged Fittings

317 SS 90 Degree Forged Elbow

317 SS 90 Degree Forged Elbow

317L SS 45 Degree Forged Elbow

317L SS 45 Degree Forged Elbow

317 Stainless Steel Full Coupling

317 SS Full Coupling

317 Stainless Steel Half Coupling

317 Stainless Steel Half Coupling

317 Stainless Steel Forged Tee

317 Stainless Steel Forged Tee

317L Stainless Steel Forged Cross

317L Stainless Steel Forged Cross

SS 317 Threaded End Cap

SS 317 Threaded End Cap

317 Stainless Steel Threaded Union

317 Stainless Steel Threaded Union

Stainless Steel 317 Bushing

Stainless Steel 317 Bushing

Stainless Steel 317 Street elbow

Stainless Steel 317 Street elbow

Stainless Steel 317 Plug

Stainless Steel 317 Plug

SS 317 Barrel Nipple

SS 317 Barrel Nipple

Other Types Of Stainless Steel 317 Forged Pipe Fittings

  • 317 Stainless Steel Hex Head Plug
  • Stainless Steel 317 Threaded Elbow
  • 317 Stainless Steel Couplings
  • UNS S31703 Forged Fittings
  • 317 Stainless Steel Threaded Fittings
  • 317 Stainless Steel Hex Head Bushing
  • 1.4438 High Pressure Forged Fittings
  • UNS S31700 Forged Pipe Fittings
  • 317 Stainless Steel Screwed Fittings
  • ASTM A182 F317 Stainless Steel SW Fittings
  • 317L Stainless Steel Socket Weld Fittings
  • SS 317 Scoket weld Elbow
  • Stainless Steel 317 NPT Fittings
  • SS 317 Threaded Fittings
  • Stainless Steel 317 Forged Fittings
  • 317L Stainless Steel Forged Cap
  • SS 317 Threaded Pipe Nipple
  • Stainless Steel 317 Welding Boss
  • ASME SA182 317L Stainless Steel Forged Cap
  • 4 Inch SS 317 NPT Threaded Tee
  • ASME B16.11 SS 317L 90 Degree Threaded Elbow
  • Stainless Steel 317 1/2 SW Half Coupling
  • 317 SS Class 6000 Socket Weld Fittings
  • SS 317 Reducing Coupling
  • 1.4449 Forged Equal Cross
  • SS 317L 3000 LB Socket Weld Fittings
  • 317 Stainless Steel Union
  • Stainless Steel 317 Reducer Insert
  • 317 Stainless Steel Threaded Adapter
  • ASTM A182 SS 317 Threaded 45 Deg Elbow
