Raw Material Selection
The manufacturing process of flanges begins with the careful selection of raw materials.

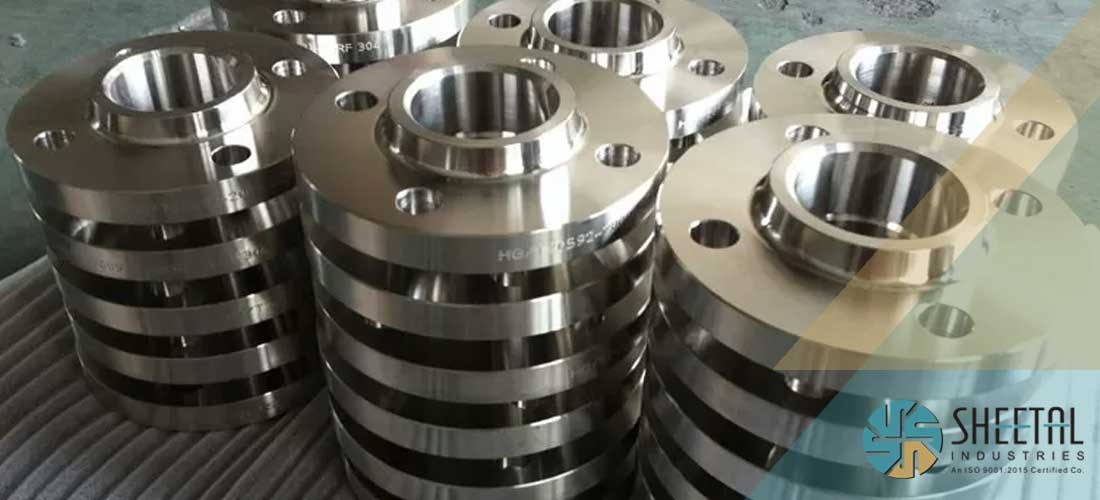

Stainless Steel 904L Flanges
Stainless Steel 904L Flanges are essential components in a wide range of industrial applications where corrosion resistance is paramount. This high-alloy austenitic stainless steel, often referred to as N08904, is specifically designed to combat aggressive environments such as strong acids, high temperatures, and saltwater. Its exceptional resistance to corrosion makes it an ideal choice for critical components like flanges.
Table Of Content
- Manufacturing Process Of Stainless Steel 904L Flanges
- Specification Of SS 904L Flanges
- Stainless Steel 904L Flanges Equivalent Grades
- Chemical Composition of SS 904L Flanges
- Mechanical Properties of SS 904L Flanges
- Types Of Stainless Steel 904L Pipe Flanges
- Other Types Of Stainless Steel 904L Flanges
- UNS N08904 Flanges Price, Dimension, Weight
- SS 904L Flanges Industrial Application
- Export & Supply Destination of SS 904L Flanges
Key Features:
Corrosion Resistance: The hallmark feature of Stainless Steel 904L is its unparalleled resistance to a variety of corrosive agents, including sulfuric acid, phosphoric acid, and chloride-rich environments. This resistance ensures the longevity of flanges even in harsh conditions.
High Nickel and Molybdenum Content: The high nickel and molybdenum content in 904L contributes to its exceptional corrosion resistance and durability. This makes it suitable for applications in the chemical, petrochemical, and pharmaceutical industries.
Heat Resistance: Stainless Steel 904L maintains its mechanical properties at elevated temperatures, which is crucial for flanges used in high-temperature applications. It also offers excellent weldability, making it convenient for fabrication.
Non-magnetic: 904L is non-magnetic in all conditions, making it versatile for various industries, including those where magnetic interference must be minimized.
Toughness and Durability: Flanges made from 904L exhibit exceptional toughness and durability, ensuring they can withstand the rigors of industrial use over extended periods.
Applications: Stainless Steel 904L flanges find applications across numerous industries, including:
Chemical Industry: They are used in the production and transportation of aggressive chemicals.
Petrochemical Industry: 904L flanges are vital for offshore and onshore oil and gas operations, where exposure to corrosive environments is common.
Pharmaceutical Industry: They are utilized in pharmaceutical manufacturing, where hygiene and corrosion resistance are critical.
Desalination Plants: Given their resistance to saltwater corrosion, 904L flanges are indispensable in desalination facilities.
Power Plants: They play a role in power generation, especially in high-temperature and high-pressure environments.
Marine Applications: Their resistance to saltwater corrosion makes them suitable for marine installations.
Cutting and Shaping
Once the raw materials are selected, they undergo a precise cutting and shaping process.
Finishings and Coatings
Coating the materials to a specific temperature ensures they become malleable, facilitating the shaping process.
Welding and Joining
These processes ensure secure and leak-proof connections, enhancing the reliability and longevity.
Finishing and Quality Control
After this the buttweld fittings undergo comprehensive finishing and quality control procedures.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
| Standard | ASTM A182 / ASME SA182 |
| Dimension | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Flanges Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Pressure Class | PN 2.5 TO PN 400 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Table | D, E, F, H |
| Types | Forged / Threaded / Screwed / Plate |
| Form | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange. |
| Flanges Marking | All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
904L SS Weld Neck Flanges
904L SS Blind Flange
904L Stainless Steel Socket Weld Flange
904L Stainless Steel Ring Type Joint Flange
904L Stainless Steel Threaded Flanges
904L Stainless Steel Forged Flange
904L Stainless Steel Lap Joint Flange
SS 904L Spectacle Blind Flange
Stainless Steel 904L Reducing Flanges
Stainless Steel 904L Square Flanges
SS 904L Flat Face Flange
- 904L Stainless Steel Spectacle Blind Flanges
- SS 904L Pipe Flanges
- SS 904L Lap Joint Flanges
- SS 904L Blind Flanges
- SS 904L Slip On Flanges
- ASTM A182 904L Stainless Steel Ring Type Joint Flanges
- Stainless Steel 904L Tongue & Groove Flanges
- 904L Stainless Steel Weld Neck Flanges
- Stainless Steel 904L Socket Weld Flanges
- Stainless Steel 904L Long Weld Neck Flanges
- Stainless Steel 904L Forged Flanges
- 904L Stainless Steel Loose Flanges
- UNS N08904 Threaded Flanges
- SS 904L Plate Flanges
- 1.4539 Reducing Flanges
- Stainless Steel 904L RTJ Flanges
- 904L Stainless Steel Slip on Flanges
- SS 904L SWRF Flange
- UNS N08904 Screwed Flanges
- 904L Stainless Steel Male & Female Flanges
- Stainless Steel 904L Ring Type Joint Flanges
- 904L Stainless Steel SORF Flanges
- 1.4539 Blind Flange
- ASTM A182 904L Flat Face Flanges
- Stainless Steel 904L Welding Neck Flange
- Stainless Steel 904L PN 10 Flange
- ASME SA182 904L Stainless Steel Nipoflange
- 904L Stainless Steel Socket weld Flanges
- ASME B16.5 Stainless Steel 904L BLRF Flanges
- Stainless Steel 904L Spectacle Blind Flanges
Ask Free Sample of SS 904L Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) Flanges Please Call On +91 9594327775 Or Mail Us On [email protected]
