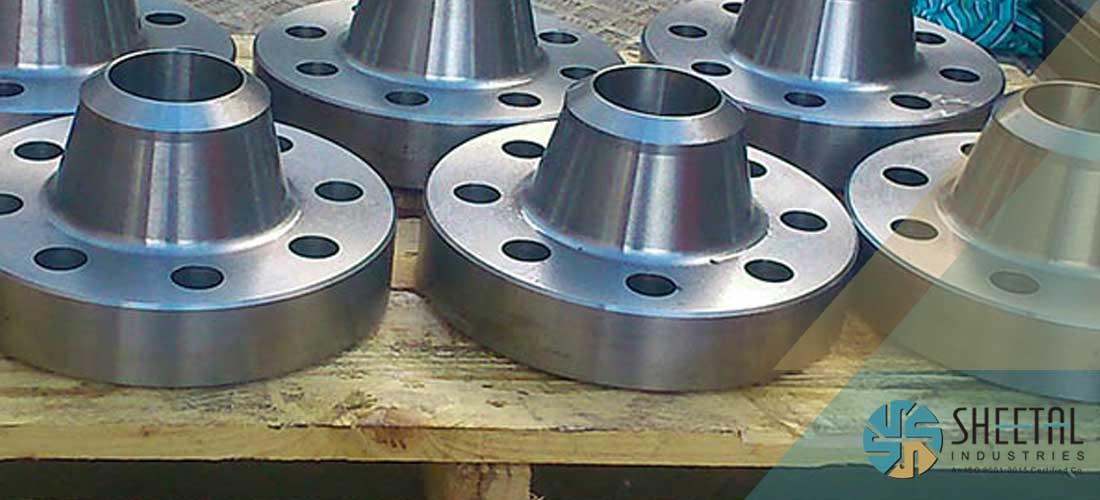

Stainless Steel 317 and 317L are austenitic stainless steel alloys known for their exceptional resistance to corrosion and a wide range of aggressive chemicals. When it comes to constructing critical components like flanges, these alloys are the preferred choice due to their remarkable durability and performance.
Corrosion Resistance: Stainless Steel 317 and 317L are highly resistant to corrosion, even in harsh environments. This makes them ideal for flange applications where exposure to corrosive substances is a concern. These alloys contain molybdenum, which enhances their resistance to pitting, crevice, and general corrosion.
High-Temperature Performance: Flanges made from these alloys maintain their structural integrity at elevated temperatures. This makes them suitable for applications in industries such as petrochemicals, chemical processing, and heat exchangers, where high-temperature resistance is essential.
Dual Certified Alloy: The "L" in 317L signifies the low carbon content in this alloy, providing even greater corrosion resistance in specific environments. Both 317 and 317L can be used interchangeably, making them versatile options for various applications.
Ease of Fabrication: Stainless Steel 317/317L Flanges are known for their ease of fabrication, allowing for precise and complex shapes. This makes them adaptable to different flange types, including slip-on, weld neck, socket weld, and threaded flanges.
Versatile Application: These flanges find applications in diverse industries, including chemical processing, oil and gas, food and beverage, pharmaceuticals, and more. They are commonly used in pipe connections, where their robust and corrosion-resistant nature ensures the longevity of the system.
Compatibility: Stainless Steel 317/317L Flanges are compatible with a wide range of piping materials, further enhancing their versatility. They can be used with stainless steel, carbon steel, and other alloy piping, allowing for seamless integration into existing systems.
Low Maintenance: Due to their exceptional corrosion resistance, flanges made from 317/317L alloys require minimal maintenance, reducing downtime and operational costs.
Certifications and Standards: These flanges typically adhere to international standards like ASME B16.5 and ASTM A182, ensuring their quality and performance meet the industry's stringent requirements.
Manufacturing Process Of Stainless Steel 317 Flanges
Raw Material Selection
The manufacturing process of flanges begins with the careful selection of raw materials.
Cutting and Shaping
Once the raw materials are selected, they undergo a precise cutting and shaping process.
Finishings and Coatings
Coating the materials to a specific temperature ensures they become malleable, facilitating the shaping process.
Welding and Joining
These processes ensure secure and leak-proof connections, enhancing the reliability and longevity.
Finishing and Quality Control
After this the buttweld fittings undergo comprehensive finishing and quality control procedures.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
Specification Of SS 317L Flanges
Standard |
ASTM A182 / ASME SA182 |
Dimension |
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Flanges Size |
1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
Flange Face Type |
Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Pressure Class |
PN 2.5 TO PN 400 |
Pressure Rating ANSI |
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
Pressure Calculation in DIN |
6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
Table |
D, E, F, H |
Types |
Forged / Threaded / Screwed / Plate |
Form |
Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange. |
Flanges Marking |
All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
Stainless Steel 317 Flanges Equivalent Grades
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
EN |
SS 317 |
1.4449 |
S31700 |
SUS 317 |
- |
SS 317L |
1.4438 |
S31703 |
SUS 317L |
X2CrNiMo18-15-4 |
Chemical Composition of SS 317L Flanges
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 - 20.00 |
3.00 - 4.00 |
11.00 - 15.00 |
57.845 min |
SS 317L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 - 20.00 |
3.00 - 4.00 |
11.00 - 15.00 |
57.89 min |
Mechanical Properties of SS 317 Flanges
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
Types Of Stainless Steel 317L Flanges
317 Stainless Steel Slip-On Flanges
317L SS Weld Neck Flanges
317L Stainless Steel Socket Weld Flange
317 Stainless Steel Ring Type Joint Flange
317 Stainless Steel Threaded Flanges
317 Stainless Steel Forged Flange
317L Stainless Steel Lap Joint Flange
SS 317 Spectacle Blind Flange
Stainless Steel 317 Reducing Flanges
Stainless Steel 317L Square Flanges
Other Types Of Stainless Steel 317 Flanges
- Stainless Steel 317L Long Weld Neck Flanges
- 317 Stainless Steel Loose Flanges
- 1.4449 Reducing Flanges
- SS 317 Pipe Flanges
- UNS S31700 Threaded Flanges
- SS 317 Slip On Flanges
- Stainless Steel 317L Forged Flanges
- 317 Stainless Steel Spectacle Blind Flanges
- SS 317L Plate Flanges
- ASTM A182 317L Stainless Steel Ring Type Joint Flanges
- SS 317 Blind Flanges
- Stainless Steel 317L Socket Weld Flanges
- 317L Stainless Steel Weld Neck Flanges
- Stainless Steel 317 Tongue & Groove Flanges
- SS 317 Lap Joint Flanges
- ASME SA182 317 Stainless Steel Nipoflange
- ASME B16.5 Stainless Steel 317L BLRF Flanges
- 317L Stainless Steel Socket weld Flanges
- 1.4438 Blind Flange
- 317 Stainless Steel Male & Female Flanges
- Stainless Steel 317 Ring Type Joint Flanges
- 317L Stainless Steel Slip on Flanges
- ASTM A182 317L Flat Face Flanges
- 317L Stainless Steel SORF Flanges
- Stainless Steel 317 RTJ Flanges
- UNS S31703 Screwed Flanges
- Stainless Steel 317 Spectacle Blind Flanges
- Stainless Steel 1.4435 PN 10 Flange
- SS 317 SWRF Flange
- Stainless Steel 317L Welding Neck Flange
UNS S31700 Flanges Price, Dimension, Weight
