Stainless Steel 316L Buttweld Fittings

Stainless Steel 316L Buttweld Fittings

What is the difference between Stainless Steel 316 and 316L?

Stainless Steel 316 and 316L are both austenitic stainless steel alloys, but the "L" in 316L stands for "low carbon." The main difference between the two is the carbon content. Stainless Steel 316L contains a lower carbon content compared to 316, which makes it more resistant to sensitization, a process that can cause intergranular corrosion in certain environments.

What are the common applications of Stainless Steel 316/316L Buttweld Pipe Fittings?

Stainless Steel 316L buttweld pipe fittings are commonly used in various industries. Some common applications include chemical processing, petrochemical, oil and gas, pharmaceuticals, food and beverage processing, marine environments, and high-corrosion environments where resistance to chemicals and acids is required.

What are the benefits of using Stainless Steel 316/316L Pipe fittings?

Stainless Steel 316 pipe fittings offer several benefits. They have excellent corrosion resistance, high strength, and good weldability. These fittings also provide resistance to pitting and crevice corrosion in chloride environments. Additionally, they exhibit good heat resistance and are suitable for use in both high and low-temperature applications.

What are the available sizes and dimensions of these fittings?

Stainless Steel 316/316L buttweld pipe fittings come in various sizes and dimensions to suit different requirements. Common sizes range from 1/2 inch to 24 inches in diameter, with a variety of standard wall thicknesses such as Schedule 10, Schedule 40, and Schedule 80. Specific dimensions can vary depending on the manufacturer and standards followed.

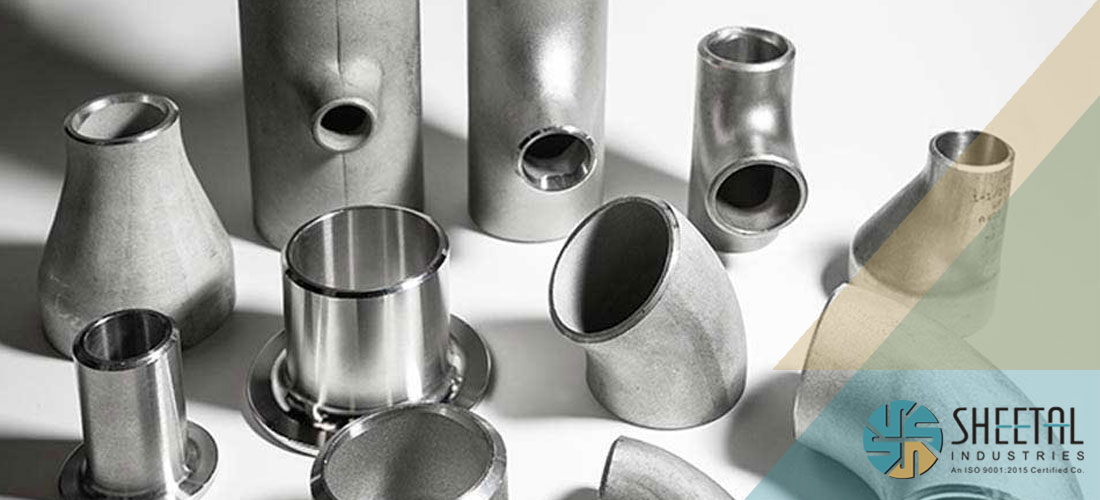

316 Stainless Steel Buttweld Fittings

How do Stainless Steel 316/316L buttweld fittings compare to other materials?

Stainless Steel 316/316L buttweld fittings offer several advantages over other materials. Compared to carbon steel fittings, they provide superior corrosion resistance, making them suitable for harsh environments. When compared to other stainless steel grades, 316/316L exhibits excellent resistance to chloride-induced pitting and crevice corrosion. However, it's important to consider factors like cost, specific application requirements, and compatibility with other materials when selecting fittings for a particular project.

Manufacturing Process Of Stainless Steel 316 Buttweld Fittings

Specification Of SS 316L Butt Weld Fittings

Specifications ASTM A403 / ASME SA403
Size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type DN15-DN1200
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting
Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection Welding
Manufacturing process Forge, Cast, Push, Press, etc.
Key markets and industries Bitumen upgraders.
Heavy oil refineries.
Petrochemicals and acids.
Nuclear power (mostly seamless).
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Stainless Steel 316 Buttweld Fittings Equivalent Grades

STANDARD UNS WNR. AFNOR EN JIS BS GOST
SS 316 S31600 1.4401 / 1.4436 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 SUS 316 316S31 / 316S33 -
SS 316L S31603 1.4404 / 1.4435 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2

Chemical Composition of SS 316L Buttweld Fittings

C Mn Si P S Cr Mo Ni N
316
(S31600)
0.08
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max
316L
(S31603)
0.03
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max

Mechanical Properties of SS 316 Buttweld Fittings

Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % Hardness (Brinell) MAX Hardness
(Rockwell B) MAX
316 (S31600) 75 30 40 217 95
316L (S31603) 70 25 40 217 95

Types Of Stainless Steel 316 Welded Fittings

316 Stainless Steel 90 Degree Elbow

316 Stainless Steel 90 Degree Elbow

316L SS 45 Degree Elbow

316L SS 45 Degree Elbow

316 Stainless Steel Long Radius Elbow

316 SS Long Radius Elbow

316 Stainless Steel Short Radius Elbow

316 Stainless Steel Short Radius Elbow

316 Stainless Steel Concentric Reducer

316 Stainless Steel Concentric Reducer

316L Stainless Steel Eccentric Reducer

316L Stainless Steel Eccentric Reducer

ASTM A403 WP316L Stainless Steel Pipe Bend

WP316L Stainless Steel Pipe Bend

316 Stainless Steel Tee

316 Stainless Steel Tee

Stainless Steel 316 Cross

Stainless Steel 316 Cross

Stainless Steel 316 Stub End

Stainless Steel 316 Stub End

Stainless Steel 316 Pipe Cap

Stainless Steel 316 Pipe Cap

ASME SA403 SS 316L Pipe Nipple

SS 316L Pipe Nipple

Other Types Of Stainless Steel 316 Seamless Fittings

  • SS 316 Schedule 40 180° LR Return Bend
  • Stainless Steel 316L Elbow
  • 316 Stainless Steel Reducer
  • SS 316 Seamless Pipe Elbow
  • Stainless Steel 316L Stub End
  • SS 316 Schedule 10 Two Joint Pipe Fittings
  • 316L Stainless Steel 90° Weldable SR Elbow
  • UNS S31603 Welded Fittings
  • UNS S31603 Buttweld Fittings
  • UNS S31600 Buttweld Pipe Fittings
  • ASTM A403 WP316 Stainless Steel 45 Degree Elbow
  • 1.4404 Seamless Fittings
  • Stainless Steel 316 Seamless Pipe Bend
  • 2 inch 316 Stainless Steel Pipe Fittings
  • 316 Stainless Steel Pipe Fittings
  • ASTM A403 WP316 45° Long Radius Elbow
  • ASME B16.9 Stainless Steel 316L 1D Elbow
  • ASME SA403 WP316L Stainless Steel Buttweld Cap
  • SS 316 Sch 10 Lateral Tee
  • 316L Stainless Steel End Pipe Cap
  • 1.4401 Equal Cross
  • 316 Stainless Steel Weldable 3D Elbow
  • SS 316 Schedule 40 Pipe Reducer
  • Stainless Steel 316 SR Elbow
  • Stainless Steel 316 U Bend
  • 316 Stainless Steel 180 Degree Elbow
  • 316 Stainless Steel Lap Joint Stub End
  • Stainless Steel 316L Pipe End Cap
  • Stainless Steel 316 Reducing Tee
  • MSS-SP-75 SS 316 Buttweld Pipe Fittings
