Aluminium Bronze C95800 Forged Fittings

Aluminium Bronze C95800 Forged Fittings

CA 104 is a high-strength material, combined with good resistance to oxidation and corrosion, especially in marine environments. Although other optional additions such as iron, nickel, manganese and silicon can be added for even greater corrosion resistance, strength and toughness properties.

• What are the advantages of Aluminium Bronze C95800 forged fittings?
Aluminium Bronze C95800 forged fittings offer several advantages, including:
1. Excellent corrosion resistance in seawater and other harsh environments.
2. High strength and durability, make them suitable for high-pressure applications.
3. Good resistance to wear and erosion.
4. High thermal conductivity.
5. Good machinability and weldability.
6. Non-magnetic properties.

• What are the common applications of Aluminium Bronze C95800 forged fittings?
Aluminium Bronze C95800 forged fittings are commonly used in industries such as marine, oil and gas, chemical processing, and desalination plants. Some specific applications include:
1. Seawater handling systems and marine equipment.
2. Offshore and onshore oil and gas platforms.
3. Heat exchangers and condensers.
4. Piping systems for chemical processing plants.
5. Desalination plants and water treatment facilities.
6. Valves and pumps.

• Are Aluminium Bronze C95800 forged fittings suitable for high-temperature applications?
Aluminium Bronze C95800 forged fittings are suitable for high-temperature applications. They have good heat resistance and can withstand elevated temperatures without significant loss of mechanical properties.

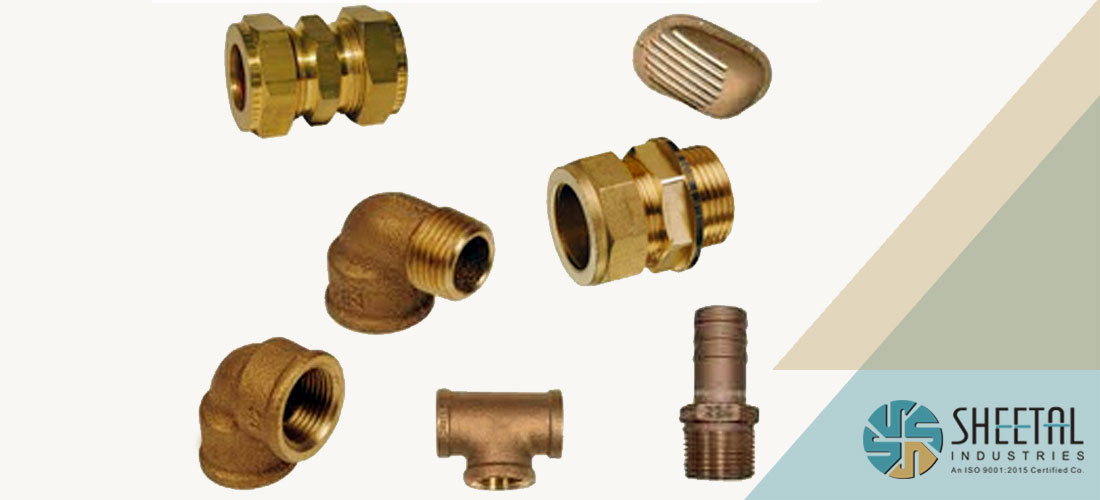

C95800 Aluminium Bronze Forged Fittings

• How Aluminium Bronze C95800 has forged fittings manufactured?
Aluminium Bronze C95800 forged fittings are manufactured through a forging process. The process involves heating the alloy to a specific temperature, shaping it under high pressure using forging dies, and then cooling it to obtain the desired shape and properties. The fittings are then machined, if necessary, to achieve the final dimensions.

• Are Aluminium Bronze C95800 forged fittings resistant to corrosion?
Aluminium Bronze C95800 forged fittings exhibit excellent corrosion resistance, particularly in seawater and other aggressive environments. This resistance is due to the alloy's aluminium content, which forms a protective oxide layer on the surface, preventing further corrosion.

• Can Aluminium Bronze C95800 forged fittings be welded?
Aluminium Bronze C95800 forged fittings can be welded using appropriate welding techniques. However, it is important to follow the manufacturer's guidelines and use compatible welding electrodes or filler materials to ensure proper joint integrity and maintain the alloy's corrosion resistance.

Manufacturing Process Of Aluminium Bronze C95800 Forged Fittings

Specification Of AL Bronze Alloy C95800 Forged Fittings

Specifications ASTM / ASME
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Aluminium Bronze C95800 Forged Fittings Equivalent Grades

CDA Federal Other
C95800 QQ-C-390, G8 Aluminum Bronze

Chemical Composition of Aluminium Bronze Alloy C95800 Forged Fittings

Cu% Pb% Fe%1 Ni%1,2 Al% Mn% Si%
79.00
min

0.03
3.50-
4.50
4.00-
5.00
8.50-
9.50
0.80-
1.50

0.10

Mechanical Properties of AL Bronze C95800 Forged Fittings

Tensile Strengtd, min Yield Strengtd, at 0.5% Extension Under Load, min Elongation, in 2 in. or 50 mm min Brinell Hardness (3000 kg load) Remarks
ksi MPa ksi MPa % typical BHN
85 586 35 241 18 159

Types Of Aluminium Bronze C95800 High Pressure Forged Fittings

C95800 Aluminium Bronze 90 Degree Forged Elbow

C95800 Aluminium Bronze 90 Degree Forged Elbow

C95800 Aluminium Bronze 45 Degree Forged Elbow

C95800 Aluminium Bronze 45 Degree Forged Elbow

C95800 Aluminium Bronze Full Coupling

C95800 Aluminium Bronze Full Coupling

C95800 Aluminium Bronze Half Coupling

C95800 Aluminium Bronze Half Coupling

C95800 Aluminium Bronze Forged Tee

C95800 Aluminium Bronze Forged Tee

C95800 Aluminium Bronze Forged Cross

C95800 Aluminium Bronze Forged Cross

C95800 Aluminium Bronze Threaded Union

C95800 Aluminium Bronze Threaded Union

Aluminium Bronze C95800 Bushing

Aluminium Bronze C95800 Bushing

Aluminium Bronze C95800 Street elbow

Aluminium Bronze C95800 Street elbow

Other Types Of Aluminium Bronze C95800 Forged Pipe Fittings

  • C95800 Aluminium Bronze Hex Head Bushing
  • C95800 Aluminium Bronze Screwed Fittings
  • UNS C95800 Forged Fittings
  • AL Bronze C95800 High Pressure Forged Fittings
  • ASME B16.11 Al Bronze C95800 90° Threaded Elbow
  • C95800 Aluminium Bronze Socket Weld Fittings
  • C95800 Aluminium Bronze SW Fittings
  • AL Bronze C95800 Threaded Fittings
  • Alloy C95800 Threaded Pipe Nipple
  • AL Bronze Alloy C95800 Scoket weld Elbow
  • C95800 Aluminium Bronze Couplings
  • C95800 Aluminium Bronze Hex Head Plug
  • Aluminium Bronze C95800 NPT Fittings
  • Aluminium Bronze C95800 Threaded Elbow
  • Aluminium Bronze C95800 Threaded End Cap
  • Aluminium Bronze C95800 Plug
  • Aluminium Bronze Alloy C95800 Forged Cap
  • C95800 Aluminium Bronze Forged Pipe Fittings
  • C95800 Aluminium Bronze Threaded Adapter
  • Aluminium Bronze C95800 Reducing Coupling
  • 4 Inch AL Bronze C95800 NPT Threaded Tee
  • Alloy C95800 3000 LB Socket Weld Fittings
  • Aluminium Bronze C95800 1/2 SW Half Coupling
  • C95800 Aluminium Bronze Union
  • Aluminium Bronze C95800 Welding Boss
  • Aluminium Bronze C95800 Reducer Insert
  • Aluminium Bronze C95800 Threaded 45 Deg Elbow
  • Aluminium Bronze Forged Equal Cross
  • C95800 Aluminium Bronze Class 6000 Socket Weld Fittings
  • Aluminium Bronze C95800 Barrel Nipple
