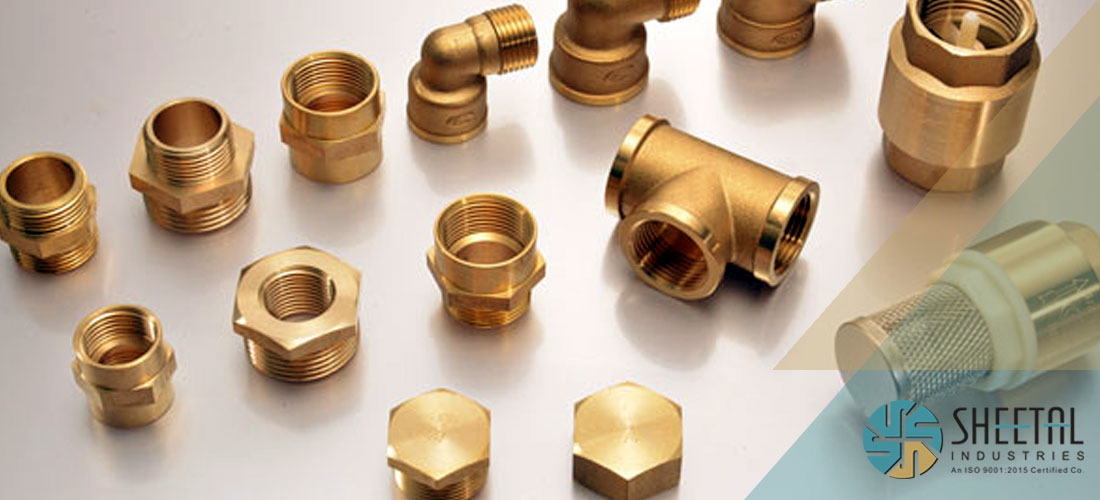

Aluminium Bronze AB2 Forged Fittings

Aluminium Bronze AB2 Forged Fittings

Aluminium Bronze AB2 Forged Fittings are specific types of fittings used in various industrial applications where resistance to corrosion, wear, and fatigue is required. Aluminium Bronze AB2 is an alloy that consists of primarily copper, aluminum, and sometimes small amounts of other elements such as iron, nickel, manganese, and zinc.

These fittings are typically made through a forging process, where the metal is heated to a high temperature and then shaped using mechanical pressure. Forged fittings are known for their superior strength and durability compared to fittings made through other methods like casting.

The key characteristics and benefits of Aluminium Bronze AB2 Forged Fittings include:
1. Corrosion resistance: Aluminium Bronze AB2 is known for its excellent resistance to corrosion, particularly in marine environments or other situations where the fittings may come into contact with corrosive substances.
2. High strength: Forged fittings made from Aluminium Bronze AB2 are incredibly strong and can withstand high-pressure applications.
3. Wear resistance: The alloy's wear-resistant properties make it suitable for applications where the fittings may be subject to abrasion and erosion.

AB2 Aluminium Bronze Forged Fittings

4. Thermal conductivity: Aluminium Bronze AB2 has good thermal conductivity, which can be beneficial in certain applications.
5. Non-magnetic: The alloy is non-magnetic, making it suitable for use in environments where magnetic interference is a concern.
Aluminium Bronze AB2 Forged Fittings are commonly used in industries such as marine, offshore, oil and gas, petrochemical, and chemical processing, where their corrosion resistance and strength are highly valued. These fittings are available in various types, including elbows, tees, couplings, adapters, plugs, and more, to suit different piping and connection requirements.

Manufacturing Process Of Aluminium Bronze AB2 Forged Fittings

Specification Of AL Bronze Alloy AB2 Forged Fittings

Specifications ASTM / ASME
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Aluminium Bronze AB2 Forged Fittings Equivalent Grades

UNS SAE AS 1565 BS1400 DIN AS BS
C95800 CA958 C95810 AB2 CuAl10Ni 1565-1998- C95210/C95810 1490 AB2

Chemical Composition of Aluminium Bronze Alloy AB2 Forged Fittings

Cu Sn Zn Ni Al Fe Mn Pb
79% min 0.10% max 0.50% max 4.00 – 5.00% 8.50 – 9.50% 3.50 – 4.50% 0.80 – 1.50% 0.05% max

Mechanical Properties of AL Bronze AB2 Forged Fittings

Tensile Strength MPa 0.2% Proof Stress MPa Elongation % Hardness HB
590 - 655 240 - 260 18 - 25 150 - 170

Types Of Aluminium Bronze AB2 High Pressure Forged Fittings

AB2 Aluminium Bronze 90 Degree Forged Elbow

AB2 Aluminium Bronze 90 Degree Forged Elbow

AB2 Aluminium Bronze 45 Degree Forged Elbow

AB2 Aluminium Bronze 45 Degree Forged Elbow

AB2 Aluminium Bronze Full Coupling

AB2 Aluminium Bronze Full Coupling

AB2 Aluminium Bronze Half Coupling

AB2 Aluminium Bronze Half Coupling

AB2 Aluminium Bronze Forged Tee

AB2 Aluminium Bronze Forged Tee

AB2 Aluminium Bronze Forged Cross

AB2 Aluminium Bronze Forged Cross

AB2 Aluminium Bronze Threaded Union

AB2 Aluminium Bronze Threaded Union

Aluminium Bronze AB2 Bushing

Aluminium Bronze AB2 Bushing

Aluminium Bronze AB2 Street elbow

Aluminium Bronze AB2 Street elbow

Other Types Of Aluminium Bronze AB2 Forged Pipe Fittings

  • AB2 Aluminium Bronze Couplings
  • AL Bronze AB2 High Pressure Forged Fittings
  • AB2 Aluminium Bronze Hex Head Bushing
  • UNS C95800 Forged Fittings
  • AB2 Aluminium Bronze Socket Weld Fittings
  • AB2 Aluminium Bronze SW Fittings
  • AL Bronze AB2 Threaded Fittings
  • Aluminium Bronze AB2 Threaded Elbow
  • AB2 Aluminium Bronze Screwed Fittings
  • ASME B16.11 Al Bronze AB2 90° Threaded Elbow
  • Alloy AB2 Threaded Pipe Nipple
  • Aluminium Bronze AB2 NPT Fittings
  • AB2 Aluminium Bronze Hex Head Plug
  • AL Bronze Alloy AB2 Scoket weld Elbow
  • AL Bronze Alloy AB2 Threaded End Cap
  • AL Bronze Alloy AB2 Plug
  • Aluminium Bronze AB2 1/2 SW Half Coupling
  • 4 Inch AL Bronze AB2 NPT Threaded Tee
  • Aluminium Bronze AB2 Welding Boss
  • Alloy AB2 3000 LB Socket Weld Fittings
  • Aluminium Bronze AB2 Forged Equal Cross
  • AB2 Aluminium Bronze Threaded Adapter
  • Aluminium Bronze AB2 Threaded 45 Deg Elbow
  • AB2 Aluminium Bronze Class 6000 Socket Weld Fittings
  • Aluminium Bronze AB2 Reducer Insert
  • Aluminium Bronze Alloy AB2 Forged Cap
  • AB2 Aluminium Bronze Union
  • AB2 Aluminium Bronze Forged Pipe Fittings
  • AL Bronze Alloy AB2 Barrel Nipple
  • Aluminium Bronze AB2 Reducing Coupling

Ask Free Sample of Aluminium Bronze Alloy AB2 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com
