Aluminium Bronze C95500 Forged Fittings

Aluminium Bronze C95500 Forged Fittings

Aluminum Bronze C95500 is a type of forged fitting that belongs to the aluminum bronze family, which is an alloy primarily composed of copper, aluminum, iron, and nickel. It is also known as C955 or ASTM B148 C95500. This alloy is highly regarded for its excellent mechanical properties, corrosion resistance, and thermal conductivity.

Let's explore some key aspects of Aluminum Bronze C95500 Forged Fittings:
Aluminum Bronze C95500 Forged Fittings find extensive applications in various industries, including marine, oil and gas, aerospace, chemical processing, and more. Their corrosion resistance, along with excellent mechanical strength and wear resistance, makes them suitable for marine and seawater-related applications. These fittings are commonly used in marine propellers, shipbuilding, pumps, valves, and other components subjected to harsh environments.

One of the standout features of Aluminum Bronze C95500 Forged Fittings is their exceptional corrosion resistance. They are particularly resistant to seawater, brine, non-oxidizing acids, and alkaline environments. This resistance to corrosion makes them an ideal choice for marine and offshore applications where exposure to saltwater and aggressive chemicals is a concern.

Aluminum Bronze C95500 Forged Fittings are typically used in a solution-annealed condition to optimize their mechanical properties. Heat treatment processes like annealing and quenching are employed to enhance their machinability and achieve specific mechanical characteristics. Post-forging heat treatments may be required, depending on the complexity of the fitting's design and the desired properties.

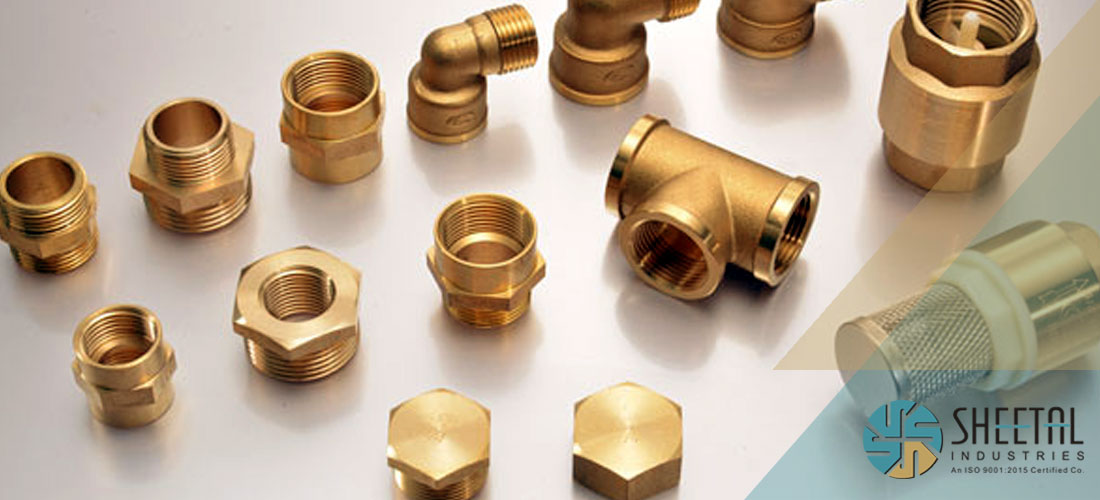

C95500 Aluminium Bronze Forged Fittings

C95500 exhibits high tensile and yield strength, making it suitable for heavy-duty applications. The alloy's wear resistance, especially in abrasive environments, ensures prolonged service life. This alloy offers good machinability, enabling ease of fabrication and forming into various fittings. Aluminum Bronze C95500 has excellent thermal conductivity, making it useful for heat exchanger components.

In summary, Aluminum Bronze C95500 Forged Fittings are highly versatile and find application in a wide range of industries, especially those involving marine environments and aggressive chemical exposure. Their impressive corrosion resistance, combined with high strength and wear resistance, makes them a reliable choice for critical components in challenging operating conditions. Proper heat treatment can further optimize their properties, allowing them to perform effectively and efficiently in demanding applications.

Manufacturing Process Of Aluminium Bronze C95500 Forged Fittings

Specification Of AL Bronze Alloy C95500 Forged Fittings

Specifications ASTM / ASME
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Aluminium Bronze C95500 Forged Fittings Equivalent Grades

CDA SAE AMS Federal Military Otder
C95500 J461
J462
  QQ-C-390, G3 MIL-B-16033, Class 4 Aluminum Bronze 9D

Chemical Composition of Aluminium Bronze Alloy C95500 Forged Fittings

Grade Cu% Fe% Ni%1 Al% Mn%
95500 78.00-
min
3.00-
5.00
3.00-
5.50
10.00-
11.50

3.50

Mechanical Properties of AL Bronze C95500 Forged Fittings

nsile Strength, min Yield Strength, at 0.5% Extension Under Load, min Elongation, in 2 in. or 50 mm min Brinell Hardness (3000 kg load) Remarks
ksi MPa ksi MPa % typical BHN
95 655 42 290 10 208

Types Of Aluminium Bronze C95500 High Pressure Forged Fittings

C95500 Aluminium Bronze 90 Degree Forged Elbow

C95500 Aluminium Bronze 90 Degree Forged Elbow

C95500 Aluminium Bronze 45 Degree Forged Elbow

C95500 Aluminium Bronze 45 Degree Forged Elbow

C95500 Aluminium Bronze Full Coupling

C95500 Aluminium Bronze Full Coupling

C95500 Aluminium Bronze Half Coupling

C95500 Aluminium Bronze Half Coupling

C95500 Aluminium Bronze Forged Tee

C95500 Aluminium Bronze Forged Tee

C95500 Aluminium Bronze Forged Cross

C95500 Aluminium Bronze Forged Cross

C95500 Aluminium Bronze Threaded Union

C95500 Aluminium Bronze Threaded Union

Aluminium Bronze C95500 Bushing

Aluminium Bronze C95500 Bushing

Aluminium Bronze C95500 Street elbow

Aluminium Bronze C95500 Street elbow

Other Types Of Aluminium Bronze C95500 Forged Pipe Fittings

  • Aluminium Bronze C95500 NPT Fittings
  • C95500 Aluminium Bronze Couplings
  • AL Bronze C95500 High Pressure Forged Fittings
  • C95500 Aluminium Bronze SW Fittings
  • UNS C95500 Forged Fittings
  • Aluminium Bronze C95500 Threaded Elbow
  • C95500 Aluminium Bronze Socket Weld Fittings
  • C95500 Aluminium Bronze Screwed Fittings
  • ASME B16.11 Al Bronze C95500 90° Threaded Elbow
  • AL Bronze C95500 Threaded Fittings
  • C95500 Aluminium Bronze Hex Head Plug
  • Alloy C95500 Threaded Pipe Nipple
  • C95500 Aluminium Bronze Hex Head Bushing
  • AL Bronze Alloy C95500 Scoket weld Elbow
  • Aluminium Bronze C95500 Barrel Nipple
  • Aluminium Bronze C95500 Plug
  • Aluminium Bronze C95500 1/2 SW Half Coupling
  • Aluminium Bronze Alloy C95500 Forged Cap
  • C95500 Aluminium Bronze Union
  • Aluminium Bronze C95500 Threaded End Cap
  • C95500 Aluminium Bronze Threaded Adapter
  • Aluminium Bronze C95500 Reducing Coupling
  • Aluminium Bronze C95500 Reducer Insert
  • 4 Inch AL Bronze C95500 NPT Threaded Tee
  • Alloy C95500 3000 LB Socket Weld Fittings
  • C95500 Aluminium Bronze Class 6000 Socket Weld Fittings
  • Aluminium Bronze Forged Equal Cross
  • C95500 Aluminium Bronze Forged Pipe Fittings
  • Aluminium Bronze C95500 Welding Boss
  • Aluminium Bronze C95500 Threaded 45 Deg Elbow

Ask Free Sample of Aluminium Bronze Alloy C95500 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com
