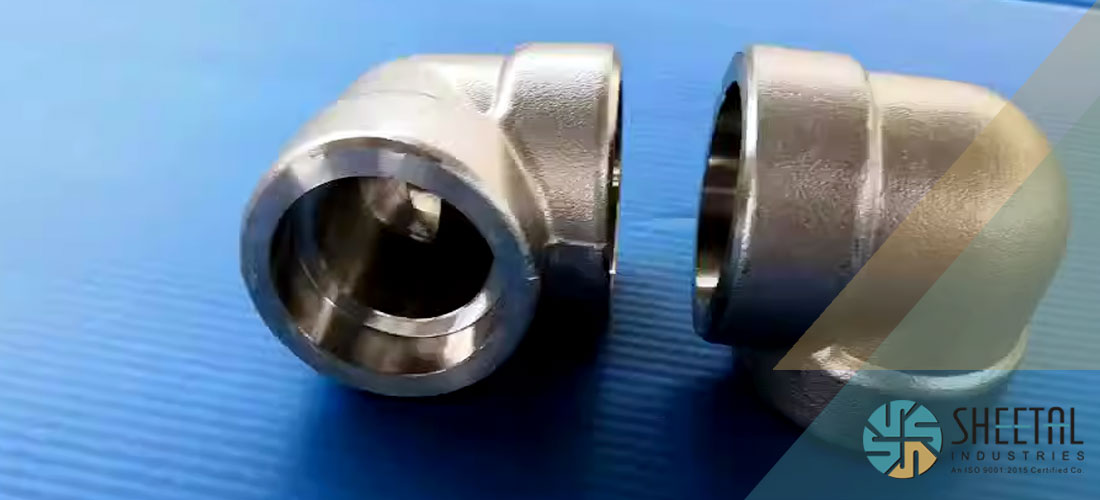

Nickel Alloy 201 Forged Fittings

Nickel Alloy 201 Forged Fittings

• What is Nickel 201 Forged Fittings?
Nickel 201 Forged Fittings are a type of pipe fittings made from Nickel 201, a commercially pure form of nickel with low carbon content. These fittings are forged to enhance their strength, durability, and resistance to corrosion.

• What are the key features of Nickel 201 Forged Fittings?
The key features of Nickel 201 Forged Fittings include excellent resistance to corrosion, particularly in reducing environments, high thermal and electrical conductivity, good mechanical properties at both room and elevated temperatures, and low gas content.

• What is the temperature range at which Nickel 201 Forged Fittings can operate effectively?
Nickel 201 Forged Fittings can operate effectively in a temperature range from cryogenic temperatures up to 704°C (1300°F). However, it is important to consult the manufacturer's specifications for specific temperature limitations.

• How does Nickel 201 Forged Fittings resist corrosion?
Nickel 201 Forged Fittings possess excellent corrosion resistance due to the high nickel content, which provides a protective passive oxide layer on the surface. This oxide layer acts as a barrier, preventing direct contact between the fitting and corrosive substances.

• Can Nickel 201 Forged Fittings be used in highly acidic environments?
Nickel 201 Forged Fittings are well-suited for use in highly acidic environments, including sulfuric acid, hydrochloric acid, and phosphoric acid. They offer superior resistance to corrosion in reducing environments with acid concentrations up to a boiling point.

201 Nickel Alloy Forged Fittings

• What are the standard specifications for Nickel 201 Forged Fittings?
Nickel 201 Forged Fittings generally conform to international standards such as ASTM B564 (ASME SB564) for fittings, ASTM B160 (ASME SB160) for forgings, and ASME B16.11 for socket weld and threaded fittings. However, it is important to check specific standards with the manufacturer.

• Can Nickel 201 Forged Fittings be customized?
Yes, Nickel 201 Forged Fittings can be customized according to specific requirements. At Sheetal Industries, we can provide tailored fittings in terms of size, shape, pressure ratings, and end connections to suit the needs of different applications.

Manufacturing Process Of Nickel Alloy 201 Forged Fittings

Specification Of Nickel 201 Forged Fittings

Specifications ASTM B564 / ASME SB564
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Nickel Alloy 201 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 201 2.4068 N02201 NW 2201 NA 12 НП-2 - LC-Ni 99

Chemical Composition of Nickel 201 Forged Fittings

Grade C Mn Si S Cu Fe Ni
Nickel 201 0.02 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

Mechanical Properties of Ni Alloy 201 Forged Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 201 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Types Of Nickel Alloy 201 High Pressure Forged Fittings

201 Nickel Alloy 90 Degree Forged Elbow

201 Nickel Alloy 90 Degree Forged Elbow

201 Nickel Alloy 45 Degree Forged Elbow

201 Nickel Alloy 45 Degree Forged Elbow

201 Nickel Alloy Full Coupling

201 Nickel Alloy Full Coupling

201 Nickel Alloy Half Coupling

201 Nickel Alloy Half Coupling

201 Nickel Alloy Forged Tee

201 Nickel Alloy Forged Tee

201 Nickel Alloy Forged Cross

201 Nickel Alloy Forged Cross

Nickel Alloy 201 Threaded End Cap

Nickel Alloy 201 Threaded End Cap

201 Nickel Alloy Threaded Union

201 Nickel Alloy Threaded Union

Nickel Alloy 201 Bushing

Nickel Alloy 201 Bushing

Nickel Alloy 201 Street elbow

Nickel Alloy 201 Street elbow

Nickel Alloy 201 Plug

Nickel Alloy 201 Plug

Nickel Alloy 201 Barrel Nipple

Nickel Alloy 201 Barrel Nipple

Other Types Of Nickel Alloy 201 Forged Pipe Fittings

  • Ni Alloy 201 High Pressure Forged Fittings
  • 201 Nickel Alloy Socket Weld Fittings
  • ASTM B564 201 Nickel Alloy SW Fittings
  • Nickel 201 Scoket weld Elbow
  • Ni Alloy 201 Threaded Fittings
  • Nickel Alloy 201 NPT Fittings
  • ASME B16.11 Nickel Alloy 201 90 Degree Threaded Elbow
  • 201 Nickel Alloy Hex Head Plug
  • 201 Nickel Alloy Hex Head Bushing
  • Nickel Alloy 201 Threaded Elbow
  • UNS N02201 Forged Fittings
  • Alloy 201 Threaded Fittings
  • 201 Nickel Alloy Couplings
  • 201 Nickel Alloy Screwed Fittings
  • Nickel Alloy 201 Welding Boss
  • Alloy 201 Threaded Pipe Nipple
  • ASME SB564 201 Nickel Forged Cap
  • 201 Nickel Alloy Class 6000 Socket Weld Fittings
  • Nickel Alloy 201 Reducer Insert
  • Alloy 201 3000 LB Socket Weld Fittings
  • Nickel Alloy 201 1/2 SW Half Coupling
  • 4 Inch Ni Alloy 201 NPT Threaded Tee
  • ASTM B564 Nickel Alloy 201 Threaded 45 Deg Elbow
  • 201 Nickel Alloy Threaded Adapter
  • 2.4068 Forged Equal Cross
  • 201 Nickel Alloy Union
  • Nickel 201 Reducing Coupling
  • 201 Nickel Alloy Forged Pipe Fittings

Ask Free Sample of Nickel 201 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com

Contact Us

UNS N02201 Forged Fittings Price, Dimension, Weight

Nickel 201 Forged Fittings Industrial Application

Oil & Gas Industry

Oil & Gas Industry

Chemical Industry

Chemical Industry

Power Generation Industry

Power Generation Industry

Construction Industry

Construction Industry

Shipbuilding Industry

Shipbuilding Industry

Automotive Industry

Automotive Industry

Food Industry

Food Industry

Textile Industry

Textile Industry
