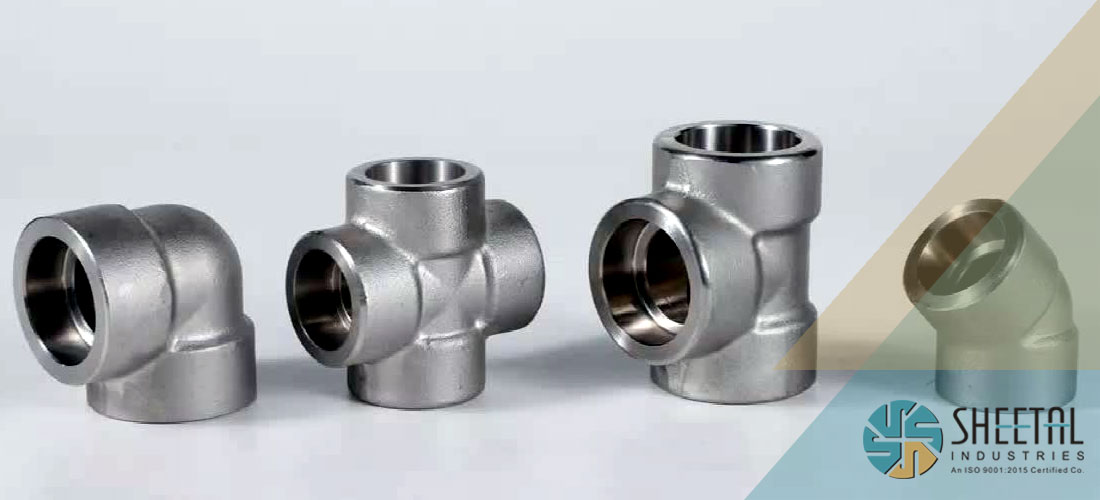

Nickel Alloy 200 Forged Fittings

Nickel Alloy 200 Forged Fittings

• What are Nickel 200 forged fittings?
Nickel 200 forged fittings are components made from Nickel 200, a commercially pure wrought nickel alloy. These fittings are manufactured through a forging process, which involves shaping the metal by applying pressure and heat.

• What are the advantages of using Nickel 200 forged fittings?
Nickel 200 forged fittings offer excellent corrosion resistance, particularly in reducing environments. They also exhibit good mechanical properties, such as high tensile strength and low electrical resistivity. Additionally, they can withstand high temperatures and have low gas content, making them suitable for various industrial applications.

• What are some common applications of Nickel 200 forged fittings?
Nickel 200 forged fittings find widespread use in industries such as chemical processing, food processing, pharmaceuticals, petrochemicals, and marine environments. They are commonly employed in piping systems, heat exchangers, valves, pumps, and other equipment where corrosion resistance and reliability are crucial.

• Are Nickel 200 forged fittings compatible with other materials?
Nickel 200 forged fittings are typically compatible with a wide range of materials, including stainless steel, carbon steel, and other nickel alloys. However, it is essential to consider factors such as temperature, pressure, and the specific environment to ensure proper compatibility and avoid galvanic corrosion.

200 Nickel Alloy Forged Fittings

• Can Nickel 200 forged fittings be used in high-temperature applications?
Nickel 200 forged fittings can withstand elevated temperatures up to approximately 600°C (1110°F) without significant loss of mechanical properties. They are commonly employed in heat exchangers, furnace components, and other applications requiring resistance to high-temperature environments.

• How are Nickel 200 forged fittings manufactured?
Nickel 200 forged fittings are produced through a forging process, where the nickel alloy is heated to a suitable temperature and then shaped using mechanical force. The heated metal is subjected to compression or hammering, which results in the desired shape and improved mechanical properties.

• Are there any limitations or considerations when using Nickel 200 forged fittings?
While Nickel 200 forged fittings offer excellent corrosion resistance, they may not be suitable for highly oxidizing environments or those containing strong acids. It is essential to assess the specific application requirements and consult with material experts to ensure the appropriate selection and performance of Nickel 200 forged fittings.

Manufacturing Process Of Nickel Alloy 200 Forged Fittings

Specification Of Nickel 200 Forged Fittings

Specifications ASTM B564 / ASME SB564
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Nickel Alloy 200 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2

Chemical Composition of Nickel 200 Forged Fittings

Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

Mechanical Properties of Ni Alloy 200 Forged Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Types Of Nickel Alloy 200 High Pressure Forged Fittings

200 Nickel Alloy 90 Degree Forged Elbow

200 Nickel Alloy 90 Degree Forged Elbow

200 Nickel Alloy 45 Degree Forged Elbow

200 Nickel Alloy 45 Degree Forged Elbow

200 Nickel Alloy Full Coupling

200 Nickel Alloy Full Coupling

200 Nickel Alloy Half Coupling

200 Nickel Alloy Half Coupling

200 Nickel Alloy Forged Tee

200 Nickel Alloy Forged Tee

200 Nickel Alloy Forged Cross

200 Nickel Alloy Forged Cross

Nickel Alloy 200 Threaded End Cap

Nickel Alloy 200 Threaded End Cap

200 Nickel Alloy Threaded Union

200 Nickel Alloy Threaded Union

Nickel Alloy 200 Bushing

Nickel Alloy 200 Bushing

Nickel Alloy 200 Street elbow

Nickel Alloy 200 Street elbow

Nickel Alloy 200 Plug

Nickel Alloy 200 Plug

Nickel Alloy 200 Barrel Nipple

Nickel Alloy 200 Barrel Nipple

Other Types Of Nickel Alloy 200 Forged Pipe Fittings

  • 200 Nickel Alloy Hex Head Plug
  • Ni Alloy 200 Threaded Fittings
  • 200 Nickel Alloy Screwed Fittings
  • 200 Nickel Alloy Hex Head Bushing
  • Nickel 200 Scoket weld Elbow
  • 200 Nickel Alloy Couplings
  • Nickel Alloy 200 NPT Fittings
  • Nickel Alloy 200 Threaded Elbow
  • Ni Alloy 200 High Pressure Forged Fittings
  • ASTM B564 200 Nickel Alloy SW Fittings
  • ASME B16.11 Nickel Alloy 200 90 Degree Threaded Elbow
  • UNS N02200 Forged Fittings
  • Alloy 200 Threaded Fittings
  • 200 Nickel Alloy Socket Weld Fittings
  • 200 Nickel Alloy Class 6000 Socket Weld Fittings
  • Alloy 200 Threaded Pipe Nipple
  • 200 Nickel Alloy Forged Pipe Fittings
  • Nickel 200 Reducing Coupling
  • 200 Nickel Alloy Threaded Adapter
  • ASME SB564 200 Nickel Forged Cap
  • 2.4066 Forged Equal Cross
  • Nickel Alloy 200 Reducer Insert
  • Nickel Alloy 200 1/2 SW Half Coupling
  • 200 Nickel Alloy Union
  • 4 Inch Ni Alloy 200 NPT Threaded Tee
  • Nickel Alloy 200 Welding Boss
  • ASTM B564 Nickel Alloy 200 Threaded 45 Deg Elbow
  • Alloy 200 3000 LB Socket Weld Fittings
