Monel K500 Buttweld Fittings

Monel K500 Buttweld Fittings

Monel K500 Buttweld Fittings are pipe fittings made from Monel K500 alloy, a nickel-copper alloy with the addition of aluminum and titanium. These fittings are designed to be joined to pipes using the buttwelding technique, where the fitting and the pipe are fused together through heat and pressure.

Monel K500 is a corrosion-resistant alloy that offers enhanced mechanical properties compared to Monel 400. It consists of approximately 65-70% nickel and 29-33% copper, with small additions of aluminum and titanium. The alloy is known for its excellent resistance to corrosion in various environments, including seawater, acids, alkalis, and high-velocity seawater.

Monel K500 Buttweld Fittings come in various types, such as elbows, tees, reducers, crosses, caps, and more. They are available in different sizes, schedules, and configurations to suit specific piping requirements. These fittings are manufactured with precise dimensions and adherence to industry standards to ensure compatibility and seamless integration with existing piping systems.

Monel K500 Buttweld Fittings exhibit exceptional resistance to fatigue, making them suitable for applications involving cyclic loading and stress. Monel K500 alloy is non-magnetic, making it ideal for applications where magnetic interference must be avoided, such as in electrical and electronic equipment. Monel K500 Pipe Fittings find applications in industries such as marine, oil and gas, chemical processing, and aerospace, where corrosion resistance, strength, and reliability are crucial.

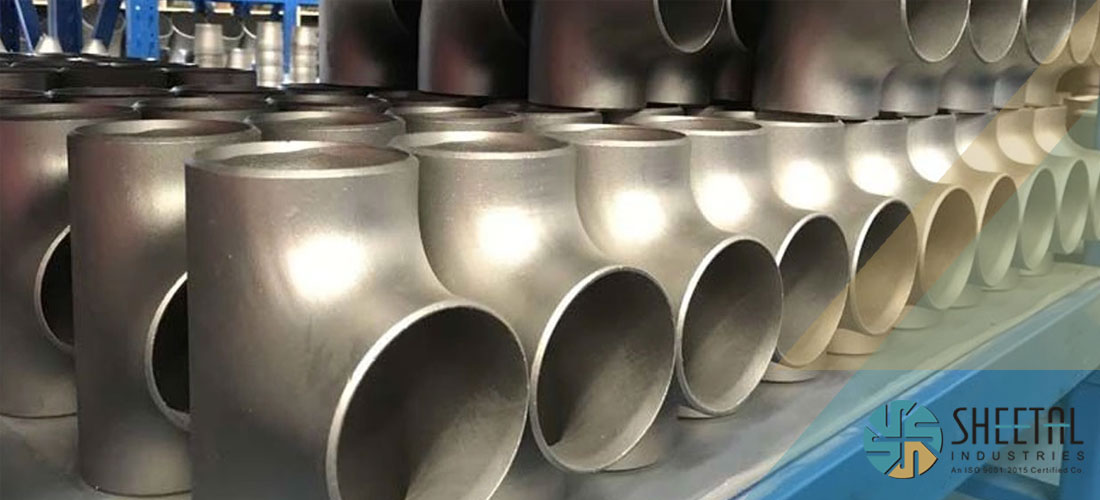

Monel Alloy K500 Buttweld Fittings

Monel K500 Buttweld Fittings are commonly used in industries where corrosion resistance and high mechanical strength are required. They are suitable for applications such as seawater piping systems, offshore equipment, chemical processing plants, oil and gas installations, and more. These fittings offer long-lasting performance and are chosen for their ability to withstand corrosive environments and high-pressure conditions.

Manufacturing Process Of Monel K500 Buttweld Fittings

Specification Of Monel Alloy K500 Butt Weld Fittings

Specifications ASTM B366 / ASME SB366
Size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type DN15-DN1200
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 Stainless Steel Buttweld Fitting
Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection Welding
Manufacturing process Forge, Cast, Push, Press, etc.
Key markets and industries Bitumen upgraders.
Heavy oil refineries.
Petrochemicals and acids.
Nuclear power (mostly seamless).
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Monel K500 Buttweld Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel K500 2.4375 N05500 - - - - -

Chemical Composition of Monel Alloy K500 Buttweld Fittings

Grade C Mn Si S Cu Fe Ni
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Mechanical Properties of Monel Alloy K500 Buttweld Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %

Types Of Monel K500 Welded Fittings

Monel Alloy K500 90 Degree Elbow

Monel Alloy K500 90 Degree Elbow

Monel® Alloy K500 45 Degree Elbow

Monel® Alloy K500 45 Degree Elbow

Monel Alloy K500 Long Radius Elbow

Monel® Alloy K500 Long Radius Elbow

Monel Alloy K500 Short Radius Elbow

Monel Alloy K500 Short Radius Elbow

Monel Alloy K500 Concentric Reducer

Monel Alloy K500 Concentric Reducer

Monel Alloy K500 Eccentric Reducer

Monel Alloy K500 Eccentric Reducer

ASTM B366 Nickel Alloy K500 Pipe Bend

Nickel Alloy K500 Pipe Bend

Nickel Alloy K500 Tee

Nickel Alloy K500 Tee

Monel K500 Cross

Monel K500 Cross

Monel K500 Stub End

Monel K500 Stub End

Monel K500 Pipe Cap

Monel K500 Pipe Cap

ASME SB366 Monel Alloy K500 Pipe Nipple

Monel Alloy K500 Pipe Nipple

Other Types Of Monel K500 Seamless Fittings

  • Monel Alloy K500 Pipe Fittings
  • Monel K500 Seamless Pipe Bend
  • Monel Alloy K500 Schedule 10 Two Joint Pipe Fittings
  • Monel K500 Schedule 40 180° LR Return Bend
  • UNS N05500 Buttweld Fittings
  • Monel Alloy K500 Seamless Pipe Elbow
  • 2.4375 Seamless Fittings
  • Monel K500 90° Weldable SR Elbow
  • 2 inch Monel K500 Pipe Fittings
  • UNS N05500 Buttweld Pipe Fittings
  • UNS N05500 Welded Fittings
  • Monel K500 Elbow
  • Monel K500 Stub End
  • Monel K500 Reducer
  • ASTM B366 Nickel Alloy K500 45 Degree Elbow
  • Monel K500 Reducing Tee
  • ASME SB366 Nickel Alloy K500 Buttweld Cap
  • Monel K500 Weldable 3D Elbow
  • Monel K500 Lap Joint Stub End
  • 2.4375 Equal Cross
  • ASME B16.9 Monel K500 1D Elbow
  • Monel K500 Sch 10 Lateral Tee
  • Monel K500 U Bend
  • Monel K500 SR Elbow
  • Monel Alloy K500 180 Degree Elbow
  • Monel K500 Pipe End Cap
  • Monel Alloy K500 Schedule 40 Pipe Reducer
  • ASTM B366 K500 45° Long Radius Elbow
  • MSS-SP-75 Monel Alloy K500 Buttweld Pipe Fittings
  • Monel K500 End Pipe Cap

Ask Free Sample of Monel K500 Elbow, Tee, Reducer, Stub End Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com

Contact Us

UNS N05500 Buttweld Fittings Price, Dimension, Weight
