Raw Material Selection
The manufacturing process of flanges begins with the careful selection of raw materials.

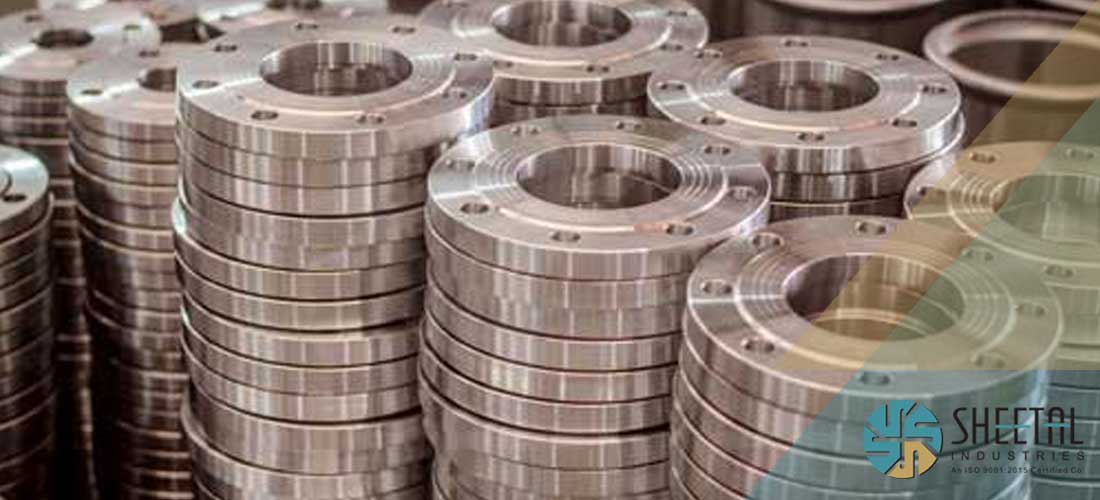

Incoloy 800 / 800H/800HT Flanges
Sheetal Industries a reliable manufacturer and supplier of Incoloy 800, 800H and 800HT flanges. These flanges are produced from nickel-iron-chromium alloys for use in high temperature and corrosive conditions. Incoloy 800 is the original grade, whereas 800H and 800HT are their corresponding high-temperature versions. All three grades share similar chemical elements nickel (30–35%), chromium (19–23%), and iron as the balance along with trace elements like aluminum and titanium (0.15–0.60%) that enhance strength. Their mechanical properties include a tensile strength of 75,000 psi, yield strength of 30,000 psi, and elongation of 30%, which makes them strong, ductile, and dependable under stress. These flanges have a high melting point of 1385°C providing superior structural stability under high temperatures.
Table Of Content
- Manufacturing Process Of Incoloy 800 Flanges
- Specification Of Incoloy® Alloy 800 Flanges
- Incoloy 800 Flanges Equivalent Grades
- Chemical Composition of Incoloy 800 Flanges
- Mechanical Properties of Incoloy 800 Flanges
- Types Of Incoloy 800 Pipe Flanges
- Other Types Of Incoloy 800H Flanges
- UNS N08825 Flanges Price, Dimension, Weight
- Incoloy 800 Flanges Industrial Application
- Export & Supply Destination of Incoloy 800HT Flanges
We offer Incoloy 800/800H/800HT flanges in various types including weld neck, slip on, threaded, blind, socket weld and lap joint. Sizes can vary from ½" to 48" and pressure ratings from class 150 to 2500. All flanges conform to ASTM B564 and ASME B16.5, B16.47, and B16.48 standards. These flanges are known for their outstanding resistance to oxidation, carburization, and nitriding in high-temperature service. The addition of carbon in 800H (0.05–0.10%) and a more controlled combination of aluminum and titanium in 800HT enhances their creep and rupture strength. This makes them a top choice for applications involving long exposure to heat and pressure.
Incoloy 800 series flanges find extensive applications in the oil and gas field, petrochemical facilities, power generation stations, and heat treating equipment. They are also suited to high-pressure steam lines, reheater tubes, furnace manifolds and process piping. Precision forging, heat treatment, CNC machining, and intensive quality checks form part of the manufacturing process to ensure that every flange is internationally compliant. Surface finishes are burr-free, smooth, and coated to resist scaling and corrosion.
Every flange is delivered with test certificates such as EN 10204 3.1/3.2, PMI reports, and mechanical test results. For secure delivery, we pack each flange in wooden crates with plastic wrapping, ensuring it remains rust-free and undamaged during transport. Reach out to us to get reliable Incoloy 800/800H/800HT flanges built for performance and durability.
Cutting and Shaping
Once the raw materials are selected, they undergo a precise cutting and shaping process.
Finishings and Coatings
Coating the materials to a specific temperature ensures they become malleable, facilitating the shaping process.
Welding and Joining
These processes ensure secure and leak-proof connections, enhancing the reliability and longevity.
Finishing and Quality Control
After this the buttweld fittings undergo comprehensive finishing and quality control procedures.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
| Standard | ASTM B564 / ASME SB564 |
| Dimension | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Flanges Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Pressure Class | PN 2.5 TO PN 400 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Table | D, E, F, H |
| Types | Forged / Threaded / Screwed / Plate |
| Form | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange. |
| Flanges Marking | All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 / 1.4876 | Z8NC33-21 | X5NiCrAlTi31-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4859 / 1.4876 | – | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
| Grade | C | Ni | Cr | Cu | Fe | Ti | Mn | Si | S | Al |
| Incoloy 800 | 0.1 max | 30-35 | 19-23 | 0.75 max | 39.5 min | 0.15-0.60 | 1.5 max | 1.0 max | 0.015 max | 0.15-0.60 |
| Incoloy 800H | 0.05-0.1 | 30-35 | 19-23 | 0.75 max | 39.5 min | 0.15-0.60 | 1.5 max | 1.0 max | 0.015 max | 0.15-0.60 |
| Incoloy 800HT | 0.06-0.1 | 30-35 | 19-23 | 0.75 max | 39.5 min | 0.25-0.60 | 1.5 max | 1.0 max | 0.015 max | 0.85-1.20 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Alloy 800H Weld Neck Flanges
Incoloy 800HT Blind Flange
Incoloy Alloy 800 Socket Weld Flange
Alloy 800 Ring Type Joint Flange
800H Incoloy Threaded Flanges
Alloy 800HT Forged Flange
Incoloy 800 Lap Joint Flange
Incoloy 800H Spectacle Blind Flange
UNS N08800 Reducing Flanges
Incoloy 800 Square Flanges
Incoloy Alloy 800 Flat Face Flange
- Inconel 800 Loose Flanges
- Incoloy 800H Blind Flanges
- Incoloy 800HT Weld Neck Flanges
- Alloy 800 Forged Flanges
- Incoloy 800 Plate Flanges
- Incoloy® Alloy 800 Tongue & Groove Flanges
- 800 Incoloy Steel Lap Joint Flanges
- 1.4876 Reducing Flanges
- Incoloy® Alloy 800 Pipe Flanges
- Incoloy Alloy 800H Slip On Flanges
- ASTM B564 Incoloy® Alloy 800 Ring Type Joint Flanges
- Nickel Alloy 800 Socket Weld Flanges
- UNS N08800 Threaded Flanges
- Alloy 800HT Long Weld Neck Flanges
- Incoloy 800 Spectacle Blind Flanges
- Nickel Alloy 800 Socket weld Flanges
- Incoloy 800H Slip on Flanges
- Incoloy 800 Spectacle Blind Flanges
- ASTM B564 Incoloy 800 Flat Face Flanges
- ASME B16.5 Incoloy 800 BLRF Flanges
- UNS N08811 Ring Type Joint Flanges
- Incoloy® Alloy 800 SORF Flanges
- Incoloy 800HT Welding Neck Flange
- Alloy 800 PN 10 Flange
- UNS N08810 Screwed Flanges
- 1.4958 Blind Flange
- Incoloy Alloy 800 Male & Female Flanges
- Incoloy 800 RTJ Flanges
- 1.4859 SWRF Flange
- ASME SB564 Inconel 800 Nipoflange
Ask Free Sample of Incoloy 800 Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) Flanges Please Call On +91 9594327775 Or Mail Us On [email protected]
