Gun Metal C93200 Forged Fittings

Gun Metal C93200 Forged Fittings

1. What is Gun Metal C93200 Forged Fittings?
Gun Metal C93200 Forged Fittings are high-quality fittings made from a specific type of bronze alloy. These fittings are used in various applications, including plumbing, marine, and industrial systems.

2. What makes Gun Metal C93200 unique?
Gun Metal C93200 is a popular bronze alloy composed of copper, tin, and zinc. It offers excellent corrosion resistance, wear resistance, and strength, making it ideal for use in various fittings and components.

3. What are the common applications of Gun Metal C93200 Forged Fittings?
Common applications of Gun Metal C93200 Forged Fittings include:
Plumbing systems
Marine hardware and equipment
Industrial machinery
Valve and pump components
Bearings and bushings

4. What types of Gun Metal C93200 Forged Fittings are available?
There are various types of Gun Metal C93200 Forged Fittings available, including elbows, tees, couplings, unions, reducers, caps, plugs, and more. These fittings come in different sizes and shapes to accommodate various applications and requirements.

5. Are Gun Metal C93200 Forged Fittings suitable for high-pressure applications?
Yes, Gun Metal C93200 Forged Fittings are designed to withstand high-pressure applications. Their strength and durability make them suitable for use in various demanding environments.

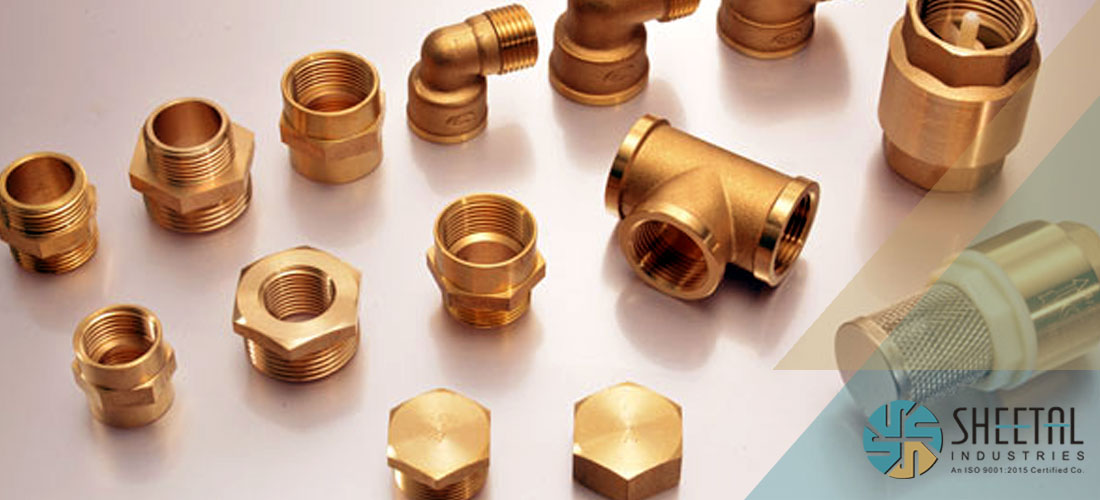

C93200 Gun Metal Forged Fittings

6. How do I choose the right Gun Metal C93200 Forged Fitting for my application?
To choose the right Gun Metal C93200 Forged Fitting for your application, consider factors such as the type of fitting, size, pressure rating, and compatibility with the materials in your system. If you're unsure, consult with an expert or the manufacturer for guidance.

7. Are there any specific temperature or pressure limitations for Gun Metal C93200 Forged Fittings?
Gun Metal C93200 Forged Fittings can withstand a wide range of temperatures and pressures. However, it's essential to consult the manufacturer or an expert for specific temperature and pressure limitations based on your application.

8. Can Gun Metal C93200 Forged Fittings be used in saltwater environments?
Yes, Gun Metal C93200 Forged Fittings can be used in saltwater environments, as they offer excellent corrosion resistance. However, regular maintenance and inspection are recommended to ensure the longevity of the fittings in such environments.

Manufacturing Process Of Gun Metal C93200 Forged Fittings

Specification Of Gun Metal C93200 Forged Fittings

Specifications ASTM / ASME
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Chemical Composition of Gunmetal C93200 Forged Fittings

Cu%1 Pb% Sn% Zn% Fe% P% Ni%1,2 Al% S% Sb% Si%
81.00- 85.00 6.00-8.00 6.30-7.50 2.00-4.00 0.20 1.50 1.00 0.005 0.08 0.35  0.005

Mechanical Properties of Leaded Gunmetal C93200 Forged Fittings

Tensile Strength, min Yield Strength, at 0.5% Extension Under Load, min Elongation, in 2 in. or 50 mm min Brinell Hardness (500 kg load) Remarks
ksi MPa ksi MPa % typical BHN
35 241 20 138 10 65

Types Of Gun Metal C93200 High Pressure Forged Fittings

C93200 Gun Metal 90 Degree Forged Elbow

C93200 Gun Metal 90 Degree Forged Elbow

C93200 Gun Metal 45 Degree Forged Elbow

C93200 Gun Metal 45 Degree Forged Elbow

C93200 Gun Metal Full Coupling

C93200 Gun Metal Full Coupling

C93200 Gun Metal Half Coupling

C93200 Gun Metal Half Coupling

C93200 Gun Metal Forged Tee

C93200 Gun Metal Forged Tee

C93200 Gun Metal Forged Cross

C93200 Gun Metal Forged Cross

C93200 Gun Metal Threaded Union

C93200 Gun Metal Threaded Union

Gun Metal C93200 Bushing

Gun Metal C93200 Bushing

Gun Metal C93200 Street elbow

Gun Metal C93200 Street elbow

Other Types Of Gun Metal C93200 Forged Pipe Fittings

  • Gun Metal C93200 Threaded Elbow
  • C93200 Gun Metal Hex Head Bushing
  • C93200 Gun Metal Couplings
  • C93200 Gun Metal Screwed Fittings
  • Gunmetal C93200 Scoket weld Elbow
  • C93200 Gun Metal SW Fittings
  • Gun Metal C93200 NPT Fittings
  • Leaded Gunmetal C93200 Threaded Fittings
  • ASME B16.11 Gunmetal C93200 90° Threaded Elbow
  • UNS C93200 Forged Fittings
  • C93200 Gun Metal Hex Head Plug
  • Leaded Gunmetal C93200 Plug
  • C93200 Gun Metal Socket Weld Fittings
  • Gunmetal C93200 High Pressure Forged Fittings
  • Gun Metal C93200 Threaded Pipe Nipple
  • C93200 Gun Metal Union
  • Gun Metal C93200 Forged Cap
  • Gun Metal C93200 Threaded 45 Deg Elbow
  • Gun Metal C93200 Reducer Insert
  • C93200 Gun Metal Threaded Adapter
  • 4 Inch Gunmetal C93200 NPT Threaded Tee
  • Gun Metal C93200 Forged Equal Cross
  • Gun Metal C93200 Threaded End Cap
  • Gun Metal C93200 3000 LB Socket Weld Fittings
  • C93200 Gun Metal Forged Pipe Fittings
  • Gun Metal C93200 Reducing Coupling
  • C93200 Gun Metal Class 6000 Socket Weld Fittings
  • Leaded Gunmetal C93200 Welding Boss
  • Gun Metal C93200 Barrel Nipple
  • Gun Metal C93200 1/2 SW Half Coupling

Ask Free Sample of Gun Metal C93200 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com
