Gun Metal C83600 Forged Fittings

Gun Metal C83600 Forged Fittings

• What is Gun Metal C83600 Forged Fittings?
Gun Metal C83600 is a type of copper alloy that is primarily composed of copper (approximately 85-89%), tin (approximately 5-7%), and zinc (approximately 4-6%). It is known for its excellent strength, corrosion resistance, and machinability. Gun Metal C83600 forged fittings are plumbing components made from the Gun Metal C83600 alloy through the forging process. They are designed to connect or join pipes together, providing a secure and leak-free connection in various plumbing and industrial applications.

• What are the advantages of Gun Metal C83600 forged fittings?
Gun Metal C83600 forged fittings offer several advantages, including: Corrosion resistance: The alloy's composition provides excellent resistance to corrosion, making it suitable for various environments, including saltwater applications.

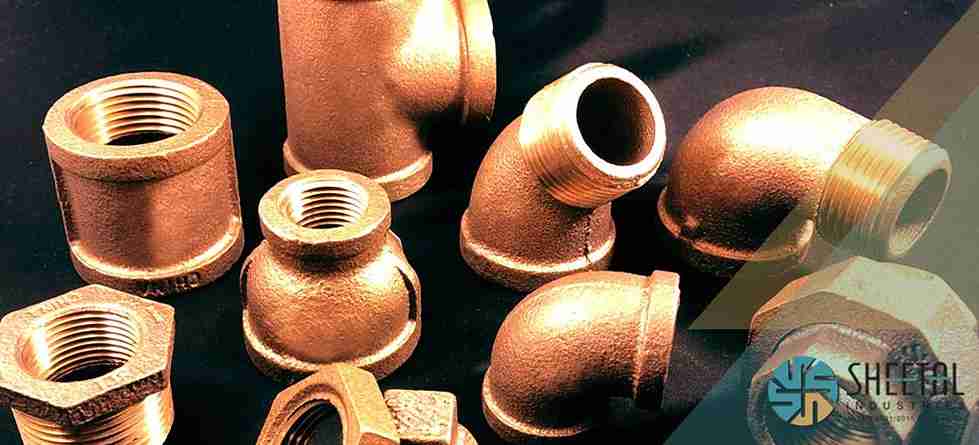

C83600 Gun Metal Forged Fittings

Strength: Gun Metal C83600 exhibits good mechanical strength, allowing the fittings to withstand high pressure and temperature conditions.
Machinability: The alloy is easy to machine, enabling precise shaping and customization of fittings for specific requirements.
Durability: Gun Metal C83600 forged fittings are highly durable, ensuring a long service life with minimal maintenance.

• What applications are Gun Metal C83600 forged fittings suitable for?
Gun Metal C83600 forged fittings are commonly used in various applications, including plumbing systems, water distribution networks, marine environments, oil and gas industries, chemical processing plants, and other industrial settings where corrosion resistance and strength are essential.

Manufacturing Process Of Gun Metal C83600 Forged Fittings

Specification Of Gun Metal C83600 Forged Fittings

Specifications ASTM / ASME
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Chemical Composition of Gunmetal C83600 Forged Fittings

Copper (1) Aluminium Antimony Iron Lead Nickel (2) Phosphorus (3) Silicon Sulphur Tin Zinc
Min/Max 84.0-86.0 0.005 0.25 0.30 4.0-6.0 1.0 0.05 0.005 0.08 4.0-6.0 4.0-6.0
Nominal
85.0 5.0 5.0 5.0

Mechanical Properties of Leaded Gunmetal C83600 Forged Fittings

Temper Cold Work Typical/Min Temperature Tensile Strength Yield Strength (0.5% ext under load) Elongation Brinell Hardness Fatigue Strength at 108 cycles Izod Impact Strength
% °C MPa MPa % MPa J
M02 0 Minimum 20 207 97 20 0.0
M07 0 Minimum 20 248 131 15 0.0
M01 0 Minimum 20 205 97 20 0.0
M01 0 Typical 20 255 117 30 60 76 14.0

Types Of Gun Metal C83600 High Pressure Forged Fittings

C83600 Gun Metal 90 Degree Forged Elbow

C83600 Gun Metal 90 Degree Forged Elbow

C83600 Gun Metal 45 Degree Forged Elbow

C83600 Gun Metal 45 Degree Forged Elbow

C83600 Gun Metal Full Coupling

C83600 Gun Metal Full Coupling

C83600 Gun Metal Half Coupling

C83600 Gun Metal Half Coupling

C83600 Gun Metal Forged Tee

C83600 Gun Metal Forged Tee

C83600 Gun Metal Forged Cross

C83600 Gun Metal Forged Cross

C83600 Gun Metal Threaded Union

C83600 Gun Metal Threaded Union

Gun Metal C83600 Bushing

Gun Metal C83600 Bushing

Gun Metal C83600 Street elbow

Gun Metal C83600 Street elbow

Other Types Of Gun Metal C83600 Forged Pipe Fittings

  • Gun Metal C83600 NPT Fittings
  • C83600 Gun Metal Couplings
  • Gunmetal C83600 High Pressure Forged Fittings
  • C83600 Gun Metal SW Fittings
  • UNS C83600 Forged Fittings
  • Gun Metal C83600 Threaded Elbow
  • C83600 Gun Metal Socket Weld Fittings
  • C83600 Gun Metal Screwed Fittings
  • ASME B16.11 Gunmetal C83600 90° Threaded Elbow
  • Leaded Gunmetal C83600 Threaded Fittings
  • C83600 Gun Metal Hex Head Plug
  • Gun Metal C83600 Threaded Pipe Nipple
  • C83600 Gun Metal Hex Head Bushing
  • Gunmetal C83600 Scoket weld Elbow
  • Leaded Gunmetal C83600 Plug
  • Gun Metal C83600 1/2 SW Half Coupling
  • Gun Metal C83600 Forged Cap
  • C83600 Gun Metal Union
  • Gun Metal C83600 Threaded End Cap
  • C83600 Gun Metal Threaded Adapter
  • Gun Metal C83600 Reducing Coupling
  • Gun Metal C83600 Reducer Insert
  • 4 Inch Gunmetal C83600 NPT Threaded Tee
  • Gun Metal C83600 3000 LB Socket Weld Fittings
  • C83600 Gun Metal Class 6000 Socket Weld Fittings
  • Gun Metal C83600 Forged Equal Cross
  • C83600 Gun Metal Forged Pipe Fittings
  • Leaded Gunmetal C83600 Welding Boss
  • Gun Metal C83600 Threaded 45 Deg Elbow
  • Gun Metal C83600 Barrel Nipple
