Titanium Grade 5 Forged Fittings

Titanium Grade 5 Forged Fittings

Titanium Grade 5, also known as Ti-6Al-4V, is a popular and versatile alloy in the world of metallurgy and engineering. It consists of 90% titanium, 6% aluminum, and 4% vanadium, making it one of the most sought-after materials for a wide range of applications, including aerospace, medical implants, chemical processing, and marine industries. When it comes to connecting components and ensuring the integrity of critical systems, Titanium Grade 5 Forged Fittings stand out as a reliable choice.

Key Features of Titanium Grade 5 Forged Fittings:
1. Superior Strength: Titanium Grade 5 offers an exceptional strength-to-weight ratio, making it ideal for applications where lightweight but durable materials are required. The forged fittings, made from this alloy, inherit these properties, ensuring structural integrity and longevity.

2. Corrosion Resistance: Titanium Grade 5 is renowned for its exceptional resistance to corrosion, even in aggressive environments. This makes it an excellent choice for fittings exposed to corrosive substances, such as chemicals and seawater. The fittings retain their integrity and longevity, even in harsh conditions.

3. Biocompatibility: In medical applications, Titanium Grade 5 Forged Fittings are often used in implantable devices due to their biocompatibility. They do not react with bodily fluids and tissues, reducing the risk of adverse reactions and ensuring patient safety.

4. Heat and Cold Resistance: These fittings maintain their mechanical properties at both high and low temperatures, making them suitable for a wide range of temperature extremes.

5. Easy Fabrication: The forge ability of Titanium Grade 5 allows for easy and precise shaping, ensuring that the fittings can be customized to meet the specific requirements of various industries.

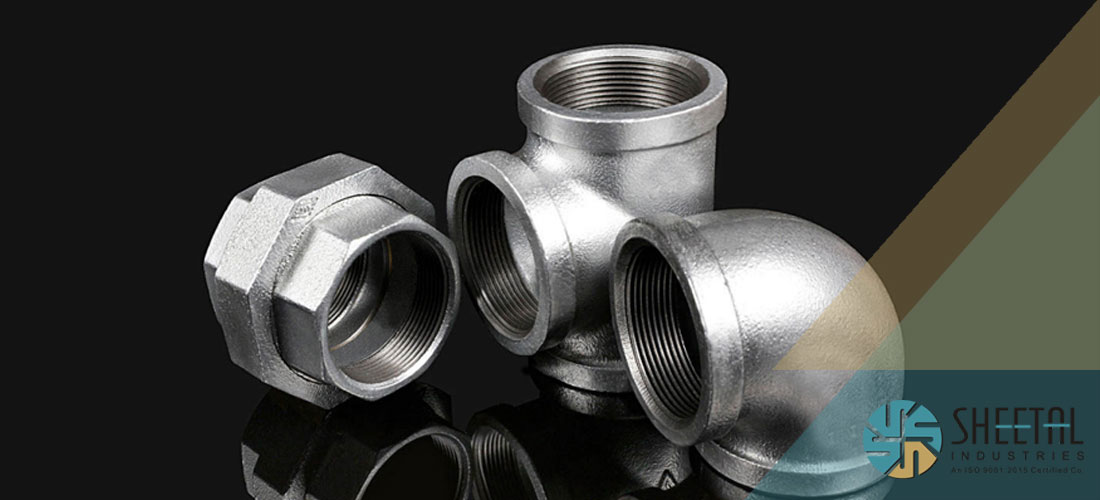

Grade 5 Titanium Forged Fittings

6. Low Thermal Expansion: The low coefficient of thermal expansion of Titanium Grade 5 ensures that the fittings remain dimensionally stable across a broad temperature range.

Applications of Titanium Grade 5 Forged Fittings:
1. Aerospace: Titanium Grade 5 fittings are used in aircraft and spacecraft, where the combination of high strength, low weight, and corrosion resistance is crucial.

2. Chemical Processing: The corrosion-resistant properties make these fittings essential in chemical processing plants for connecting pipes and vessels that handle aggressive chemicals.

3. Marine Industry: Due to its resistance to seawater corrosion, Titanium Grade 5 fittings are widely used in shipbuilding and offshore applications.

4. Medical Implants: These fittings find applications in the medical field, especially in orthopedic and dental implants, where biocompatibility is paramount.

5. Oil and Gas: In the oil and gas industry, these fittings are used in critical components subjected to corrosive and high-pressure conditions.

Manufacturing Process Of Titanium Grade 5 Forged Fittings

Specification Of Ti Alloy Grade 5 Forged Fittings

Specifications ASTM B381 / ASME SB381
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Titanium Gr 5 Forged Fittings Equivalent Grades

STANDARD UNS WNR.
Titanium Grade 5 R38100 3.7165

Chemical Composition of Titanium Alloy Grade 5 Forged Fittings

Grade C N O H Ti Fe
Ti Gr.5 0.10 max 0.05 max 0.25 max 0.015 max Bal 0.40 max

Mechanical Properties of Ti Gr.5 Forged Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Ti Gr 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Types Of Titanium Grade 5 High Pressure Forged Fittings

Grade 5 Titanium 90 Degree Forged Elbow

Grade 5 Titanium 90 Degree Forged Elbow

Grade 5 Titanium 45 Degree Forged Elbow

Grade 5 Titanium 45 Degree Forged Elbow

Grade 5 Titanium Full Coupling

Grade 5 Titanium Full Coupling

Grade 5 Titanium Half Coupling

Grade 5 Titanium Half Coupling

Grade 5 Titanium Forged Tee

Grade 5 Titanium Forged Tee

Grade 5 Titanium Forged Cross

Grade 5 Titanium Forged Cross

Titanium Grade 5 Threaded End Cap

Titanium Grade 5 Threaded End Cap

Grade 5 Titanium Threaded Union

Grade 5 Titanium Threaded Union

Titanium Grade 5 Bushing

Titanium Grade 5 Bushing

Titanium Grade 5 Street elbow

Titanium Grade 5 Street elbow

Titanium Grade 5 Plug

Titanium Grade 5 Plug

Titanium Grade 5 Barrel Nipple

Titanium Grade 5 Barrel Nipple

Other Types Of Titanium Grade 5 Forged Pipe Fittings

  • ASME B16.11 Titanium Gr.5 90 Degree Threaded Elbow
  • Ti Alloy Gr 5 Threaded Fittings
  • Grade 5 Titanium Hex Head Bushing
  • Titanium Grade 5 Threaded Elbow
  • Gr 5 Titanium Hex Head Plug
  • Ti Grade 5 High Pressure Forged Fittings
  • ASTM B381 Grade 5 Titanium SW Fittings
  • UNS R38100 Forged Fittings
  • Grade 5 Titanium Couplings
  • Titanium Gr.5 NPT Fittings
  • Nickel Alloy Grade 5 Threaded Fittings
  • Ti Alloy Grade 5 Scoket weld Elbow
  • Gr 5 Titanium Socket Weld Fittings
  • Grade 5 Titanium Screwed Fittings
  • Ti Alloy Grade 5 Threaded Pipe Nipple
  • 3.7165 Forged Equal Cross
  • Titanium Grade 5 Reducer Insert
  • 4 Inch Ti Grade 5 NPT Threaded Tee
  • Grade 5 Titanium Forged Pipe Fittings
  • Titanium Alloy Grade 5 Reducing Coupling
  • Titanium Gr.5 1/2 SW Half Coupling
  • ASME SB381 Gr 5 Titanium Alloy Forged Cap
  • ASTM B381 Titanium Grade 5 Threaded 45 Deg Elbow
  • Titanium Gr.5 Class 6000 Socket Weld Fittings
  • Grade 5 Titanium Union
  • Grade 5 Titanium Threaded Adapter
  • Ti Grade 5 3000 LB Socket Weld Fittings
  • Titanium Gr 5 Welding Boss
