Phosphorus Bronze C93800 Forged Fittings

Phosphorus Bronze C93800 Forged Fittings

• What is Phosphorus Bronze C93800 Forged Fittings?
Phosphorus Bronze C93800 is a type of bronze alloy that contains approximately 81% copper, 10% tin, and 9% lead. It is also known as SAE 67 or ASTM B505 and is commonly used in applications that require high strength, corrosion resistance, and wear resistance. Phosphorus Bronze C93800 forged fittings are components made from the C93800 alloy through a forging process. These fittings are designed to connect or join pipes, tubes, or other components in plumbing, oil and gas, marine, and various industrial applications.

• What are the advantages of using Phosphorus Bronze C93800 forged fittings?
Phosphorus Bronze C93800 forged fittings offer several advantages, including:
1. High strength and durability
2. Excellent corrosion resistance
3. Good wear resistance
4. Suitable for high-temperature environments
5. Relatively low friction coefficient
6. Good machinability and formability

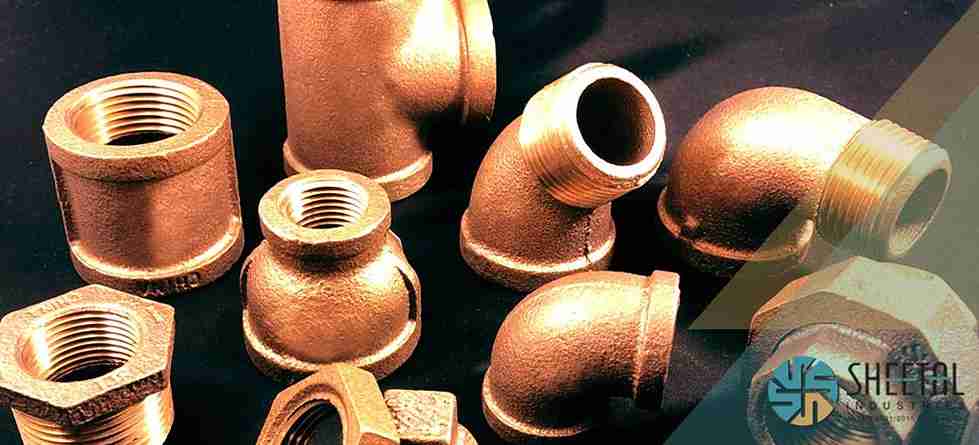

C93800 Phosphorus Bronze Forged Fittings

• What applications are Phosphorus Bronze C93800 forged fittings commonly used in?
Phosphorus Bronze C93800 forged fittings find applications in various industries, including:
1. Plumbing and pipe systems
2. Oil and gas exploration and production
3. Marine and shipbuilding
4. Chemical processing
5. Power generation
6. Aerospace
7. Automotive

• What are the temperature and pressure ratings of Phosphorus Bronze C93800 forged fittings?
The temperature and pressure ratings of Phosphorus Bronze C93800 forged fittings depend on factors such as size, design, and specific application. It is important to consult the manufacturer or refer to industry standards and guidelines for accurate information regarding temperature and pressure limits.

Manufacturing Process Of Phosphorus Bronze C93800 Forged Fittings

Specification Of Ph Bronze Alloy C93800 Forged Fittings

Specifications ASTM / ASME
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Chemical Composition of Phosphorus Bronze Alloy C93800 Forged Fittings

Phosphorus Bronze Cu% Pb% Sn% Zn% Fe% P% Ni%1 Al% S% Sb% Si%
C93800 75.00-
79.00
13.00-
16.00
6.30-
7.50

0.80

0.15

1.50

1.00

0.005

0.08

0.80

0.005

Mechanical Properties of Ph Bronze C93800 Forged Fittings

Tensile Strength, min Yield Strength, at 0.5% Extension Under Load, min Elongation, in 2 in. or 50 mm min Brinell Hardness (500 kg load)
ksi MPa ksi MPa % typical BHN
25 172 16 110 5 55

Types Of Phosphorus Bronze C93800 High Pressure Forged Fittings

C93800 Phosphorus Bronze 90 Degree Forged Elbow

C93800 Phosphorus Bronze 90 Degree Forged Elbow

C93800 Phosphorus Bronze 45 Degree Forged Elbow

C93800 Phosphorus Bronze 45 Degree Forged Elbow

C93800 Phosphorus Bronze Full Coupling

C93800 Phosphorus Bronze Full Coupling

C93800 Phosphorus Bronze Half Coupling

C93800 Phosphorus Bronze Half Coupling

C93800 Phosphorus Bronze Forged Tee

C93800 Phosphorus Bronze Forged Tee

C93800 Phosphorus Bronze Forged Cross

C93800 Phosphorus Bronze Forged Cross

C93800 Phosphorus Bronze Threaded Union

C93800 Phosphorus Bronze Threaded Union

Phosphorus Bronze C93800 Bushing

Phosphorus Bronze C93800 Bushing

Phosphorus Bronze C93800 Street elbow

Phosphorus Bronze C93800 Street elbow

Other Types Of Phosphorus Bronze C93800 Forged Pipe Fittings

  • Ph Bronze Alloy C93800 Scoket weld Elbow
  • Phosphorus Bronze C93800 Threaded End Cap
  • Ph Bronze C93800 Threaded Fittings
  • Ph Bronze C93800 High Pressure Forged Fittings
  • Phosphorus Bronze C93800 NPT Fittings
  • Phosphorus Bronze C93800 Threaded Elbow
  • C93800 Phosphorus Bronze SW Fittings
  • C93800 Phosphorus Bronze Socket Weld Fittings
  • C93800 Phosphorus Bronze Hex Head Plug
  • C93800 Phosphorus Bronze Hex Head Bushing
  • C93800 Phosphorus Bronze Couplings
  • Alloy C93800 Threaded Pipe Nipple
  • Phosphorus Bronze C93800 Plug
  • ASME B16.11 Ph Bronze C93800 90° Threaded Elbow
  • C93800 Phosphorus Bronze Screwed Fittings
  • C93800 Phosphorus Bronze Union
  • C93800 Phosphorus Bronze Forged Equal Cross
  • Phosphorus Bronze Alloy C93800 Forged Cap
  • Phosphorus Bronze C93800 1/2 SW Half Coupling
  • C93800 Phosphorus Bronze Forged Pipe Fittings
  • Phosphorus Bronze C93800 Threaded 45 Deg Elbow
  • C93800 Phosphorus Bronze Threaded Adapter
  • Phosphorus Bronze C93800 Reducing Coupling
  • Phosphorus Bronze C93800 Welding Boss
  • Phosphorus Bronze C93800 Barrel Nipple
  • Alloy C93800 3000 LB Socket Weld Fittings
  • C93800 Phosphorus Bronze Class 6000 Socket Weld Fittings
  • 4 Inch Ph Bronze C93800 NPT Threaded Tee
  • Phosphorus Bronze C93800 Reducer Insert

Ask Free Sample of Phosphorus Bronze Alloy C93800 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com
