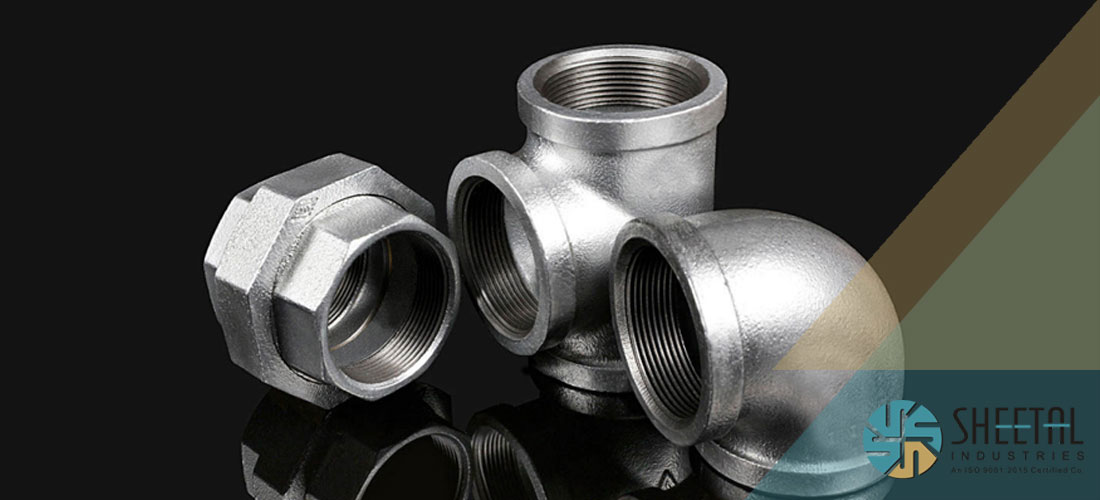

• what is Monel K500 Forged Fittings?
Monel K500 Forged Fittings are a type of pipe fittings made from Monel K500, a nickel-copper alloy that offers excellent corrosion resistance and high strength. It is commonly used in various industries such as oil and gas, chemical processing, marine, and aerospace.
What are Monel K500 Forged Fittings used for?
Monel K500 Forged Fittings are used to connect and join pipes or tubes in piping systems. They are commonly used in applications where corrosion resistance and high strength are required, such as in seawater environments, chemical processing plants, and oil refineries.
• What are the advantages of using Monel K500 Forged Fittings?
Monel K500 Forged Fittings offer several advantages, including excellent corrosion resistance in various environments, high tensile strength and hardness, good resistance to stress corrosion cracking, and the ability to maintain their mechanical properties at elevated temperatures.
• What types of Monel K500 Forged Fittings are available?
There is a wide range of Monel K500 Forged Fittings available, including elbows, tees, couplings, unions, crosses, plugs, caps, and reducers. These fittings come in different sizes and pressure ratings to suit various piping system requirements.
• How are Monel K500 Forged Fittings manufactured?
Monel K500 Forged Fittings are manufactured through a forging process that involves shaping the alloy under high pressure and temperature. The forged fittings are typically machined to achieve precise dimensions, and then they undergo various heat treatments and surface finishes for enhanced mechanical properties and corrosion resistance.
• What are the considerations for working with Monel K500 Forged Fittings?
When working with Monel K500 Forged Fittings, it is important to consider the alloy's characteristics. It has a higher strength than Monel 400 but is more difficult to machine. Therefore, appropriate tools and machining techniques should be used. Additionally, proper welding procedures and compatible filler metals are crucial to ensure the integrity and performance of the fittings in service.
Manufacturing Process Of Monel K500 Forged Fittings
Forging
Forging is a manufacturing process that involves shaping metal through the application of force.
Machining & Drilling
Both machining and drilling play crucial roles in the manufacturing of components across a wide range of industries.
Heat Treatment
Heating the metal to a temperature below the critical range and then slow cooling
Coating
The choice of coating method depends on the type of substrate, the desired properties, and the specific application.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
Specification Of Monel® alloy K500 Forged Fittings
Specifications |
ASTM B564 / ASME SB564 |
Standard |
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size |
1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
Class |
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type |
Socketweld Fittings, Screwed-Threaded Fittings |
Manufacturing process |
Forge, Cast, Push, Press, etc. |
Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
Specialized manufacturer of |
90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple |
Monel K500 Forged Fittings Equivalent Grades
STANDARD |
WERKSTOFF NR. |
UNS |
Monel K500 |
2.4375 |
N05500 |
Chemical Composition of Monel Alloy K500 Forged Fittings
Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Monel K500 |
0.25 max |
1.5 max |
0.5 max |
0.010 max |
27.00 – 33.00 |
0.5 – 2 |
63.00 min |
Mechanical Properties of Monel® K500 Forged Fittings
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
Monel K500 |
8.44 g/cm3 |
1350 °C (2460 °F) |
Psi – 160000 , MPa – 1100 |
Psi – 115000 , MPa – 790 |
20 % |
Types Of Monel K500 High Pressure Forged Fittings
K500 Monel 90 Degree Forged Elbow
K500 Monel 45 Degree Forged Elbow
Monel K500 Threaded End Cap
K500 Monel Threaded Union
Other Types Of Monel K500 Forged Pipe Fittings
- ASTM B564 K500 Monel SW Fittings
- Monel® K500 High Pressure Forged Fittings
- UNS N05500 Forged Fittings
- Alloy K500 Threaded Fittings
- Monel K500 Threaded Elbow
- K500 Monel Hex Head Bushing
- K500 Monel Socket Weld Fittings
- ASME B16.11 Monel K500 90 Degree Threaded Elbow
- Monel® alloy K500 Scoket weld Elbow
- K500 Monel Screwed Fittings
- K500 Monel Couplings
- Nickel Alloy K500 Threaded Fittings
- Monel K500 NPT Fittings
- K500 Monel Hex Head Plug
- ASTM B564 Monel K500 Threaded 45 Deg Elbow
- K500 Monel Threaded Adapter
- K500 Monel Forged Pipe Fittings
- Alloy K500 Threaded Pipe Nipple
- 4 Inch Monel® K500 NPT Threaded Tee
- Monel K500 Welding Boss
- Monel Alloy K500 Reducing Coupling
- 2.4375 Forged Equal Cross
- Monel K500 1/2 SW Half Coupling
- Monel K500 Reducer Insert
- ASME SB564 K500 Monel Alloy Forged Cap
- Alloy K500 3000 LB Socket Weld Fittings
- K500 Monel Union
- K500 Monel Class 6000 Socket Weld Fittings
UNS N05500 Forged Fittings Price, Dimension, Weight
