Inconel 600 Forged Fittings

Inconel 600 Forged Fittings

What are Inconel 600 forged fittings?
Inconel 600 is a nickel-chromium alloy known for its excellent resistance to high temperatures and corrosion. It is commonly used in applications that require high strength and resistance to oxidation and carburization. Inconel 600 forged fittings are pipe fittings made from Inconel 600 alloy using a forging process. They are designed to connect pipes or tubes together and provide a leak-proof joint in high-temperature and corrosive environments.

What are the advantages of using Inconel 600 forged fittings?
Inconel 600 forged fittings feature various advantages including high-temperature resistance, Corrosion resistance, resistance to chloride-ion stress-corrosion cracking, high mechanical strength, etc.

What types of Inconel 600 forged fittings are available? Common types of Inconel 600 forged fittings include Inconel 600 forged elbows, Inconel 600 forged tees, Inconel 600 forged caps, Inconel 600 forged couplings, and Inconel 600 forged unions.

What are the typical applications of Inconel 600 forged fittings?
Inconel 600 forged fittings are commonly used in industries such as:
1. Chemical processing: Due to its corrosion resistance, it is used in processes involving acids, alkalis, and high-temperature environments.
2. Power generation: It is used in components such as heat exchangers, steam generators, and turbine seals.
3. Aerospace: It finds applications in aircraft engine components and exhaust systems.
4. Marine: It is used in seawater applications and offshore platforms.
5. Oil and gas: It is used in equipment exposed to high-pressure and corrosive environments.

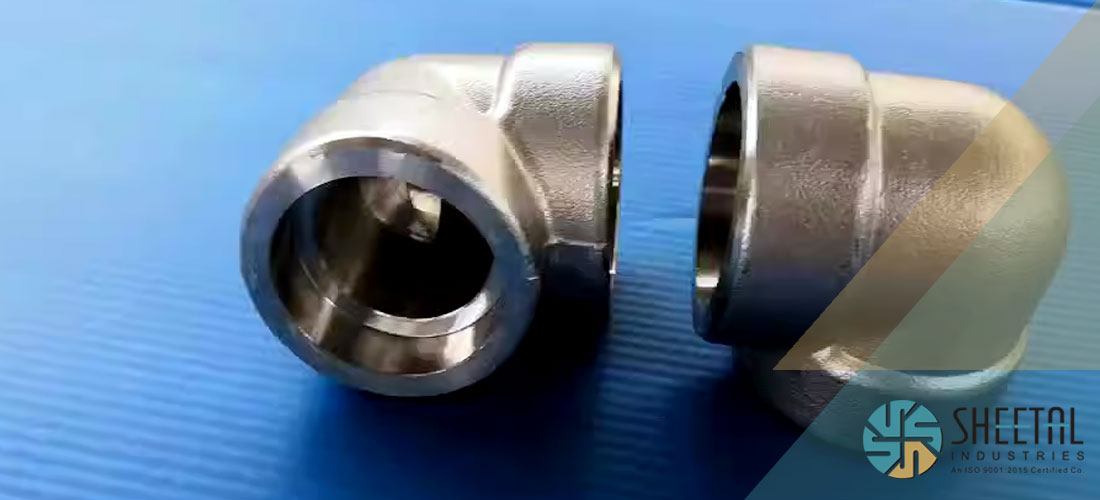

600 Inconel Forged Fittings

What are the temperature and pressure ratings for Inconel 600 forged fittings?
The temperature and pressure ratings for Inconel 600 forged fittings depend on factors such as size, wall thickness, and specific design standards. It is important to consult the manufacturer's documentation or industry standards for accurate ratings based on your specific application requirements.

Manufacturing Process Of Inconel 600 Forged Fittings

Specification Of Inconel® alloy 600 Forged Fittings

Specifications ASTM B564 / ASME SB564
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Inconel 600 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe

Chemical Composition of Inconel Alloy 600 Forged Fittings

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

Mechanical Properties of Inconel® 600 Forged Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %

Types Of Inconel 600 High Pressure Forged Fittings

600 Inconel 90 Degree Forged Elbow

600 Inconel 90 Degree Forged Elbow

600 Inconel 45 Degree Forged Elbow

600 Inconel 45 Degree Forged Elbow

600 Inconel Full Coupling

600 Inconel Full Coupling

600 Inconel Half Coupling

600 Inconel Half Coupling

600 Inconel Forged Tee

600 Inconel Forged Tee

600 Inconel Forged Cross

600 Inconel Forged Cross

Inconel 600 Threaded End Cap

Inconel 600 Threaded End Cap

600 Inconel Threaded Union

600 Inconel Threaded Union

Inconel 600 Bushing

Inconel 600 Bushing

Inconel 600 Street elbow

Inconel 600 Street elbow

Inconel 600 Plug

Inconel 600 Plug

Inconel 600 Barrel Nipple

Inconel 600 Barrel Nipple

Other Types Of Inconel 600 Forged Pipe Fittings

  • 600 Inconel Socket Weld Fittings
  • 600 Inconel Couplings
  • 600 Inconel Hex Head Plug
  • 600 Inconel Screwed Fittings
  • 600 Inconel Hex Head Bushing
  • Inconel® 600 High Pressure Forged Fittings
  • ASTM B564 600 Inconel SW Fittings
  • Inconel 600 NPT Fittings
  • Inconel® alloy 600 Scoket weld Elbow
  • Inconel 600 Threaded Elbow
  • Alloy 600 Threaded Fittings
  • Nickel Alloy 600 Threaded Fittings
  • ASME B16.11 Inconel 600 90 Degree Threaded Elbow
  • UNS N06600 Forged Fittings
  • Inconel 600 Reducer Insert
  • 600 Inconel Union
  • 4 Inch Inconel® 600 NPT Threaded Tee
  • 600 Inconel Threaded Adapter
  • Inconel Alloy 600 Reducing Coupling
  • 2.4816 Forged Equal Cross
  • 600 Inconel Forged Pipe Fittings
  • Inconel 600 1/2 SW Half Coupling
  • Alloy 600 Threaded Pipe Nipple
  • ASTM B564 Inconel 600 Threaded 45 Deg Elbow
  • Inconel 600 Welding Boss
  • 600 Inconel Class 6000 Socket Weld Fittings
  • Alloy 600 3000 LB Socket Weld Fittings
  • ASME SB564 600 Inconel Alloy Forged Cap
