What are Incoloy 800, 800H, and 800HT fasteners, and what are their key characteristics and applications?
Incoloy 800, 800H, and 800HT fasteners are high-performance alloys that belong to the Incoloy family of nickel-iron-chromium alloys. These fasteners are designed to provide exceptional corrosion resistance, strength, and high-temperature stability.
Incoloy 800 fasteners are composed of nickel, iron, and chromium, with the addition of small amounts of aluminium and titanium for improved creep and stress rupture properties. They are known for their resistance to oxidation, carburization, and nitridation, making them suitable for various applications in aggressive environments such as chemical processing, power generation, and heat-treating equipment.
Incoloy 800H fasteners have a modified chemical composition with higher carbon content, which enhances their high-temperature strength while maintaining excellent corrosion resistance. These fasteners, such as furnace components, petrochemical processing, and heat exchangers, are commonly used in applications where exposure to elevated temperatures and thermal cycling is expected.
Incoloy 800HT fasteners offer superior thermal stability due to their increased levels of aluminium and titanium. They exhibit excellent strength at elevated temperatures and are often employed in applications involving sustained high-temperature exposure, such as gas turbines, industrial furnaces, and steam generators.
How does the corrosion resistance of Incoloy 800, 800H, and 800HT fasteners compare to other materials?
Incoloy 800, 800H, and 800HT fasteners' corrosion resistance are considered excellent and highly competitive compared to other materials commonly used in fastener applications. These alloys offer exceptional resistance to various corrosive environments, including sulfuric acid, nitric acid, hydrochloric acid, and many alkaline solutions.
Compared to stainless steel, often used in various industrial applications, Incoloy 800, 800H, and 800HT fasteners demonstrate superior corrosion resistance, especially in high-temperature environments. They are less prone to stress corrosion cracking, pitting, and crevice corrosion, ensuring prolonged service life and reliability.
Incoloy 800, 800H, and 800HT fasteners exhibit similar or even better resistance to corrosive media. These alloys are particularly well-suited for environments where oxidation, carburization, and nitridation are concerns.
Manufacturing Process Of Incoloy 800 Fasteners
Forging
Forging is a manufacturing process that involves shaping metal through the application of force.
Machining & Drilling
Both machining and drilling play crucial roles in the manufacturing of components across a wide range of industries.
Heat Treatment
Heating the metal to a temperature below the critical range and then slow cooling
Quality Control & Marking, Identification
Quality control and marking are essential aspects of manufacturing and production processes across metal industries.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
Incoloy 800 Fasteners Specification
Standard |
ASTM B166 / ASME SB166 |
Bolt / Screw Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Nuts Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Washers Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Machine Screws Size |
M1.6 – M12 |
Self Tapping Screw Size |
No.2 – No. 14 |
Length |
3 mm to 200 mm |
Threads |
UNF, BSW, BSF, METRIC, UNC, or as required |
Fasteners |
- DIN : DIN 934, DIN 931, DIN 970, DIN 933
- UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
- ISO : JIS standards, ISO 4033, ISO 4032,
- ANSI – American National Standards Institute
- ASME B18.5
- ANSI B 28.2.4 1M
- as per defined in ASME B16.5 standard Stud Bolt length
- ANSI B 18.2.4 2M
- as per defined in ASME B18.2.2 Hex nuts
|
Dimensions |
DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads |
Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
Test Certificate |
as per EN 10204 / 3.1 Manufacturer Test Certificate |
Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Production Process |
M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
Types |
Bolts, Nuts, Stud Bolts, Washers, Threaded Rod, Anchor Fasteners, Eye Bolt, Stud, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, Hexagon Castle Nuts, Hexagon Domed Cap Bolts, Hexagon Thin Nuts etc. |
Incoloy 800 Fasteners Equivalent Grades
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
EN |
JIS |
BS |
GOST |
OR |
Incoloy 800 |
N08800 |
1.4876 |
Z8NC32-21 |
X10NiCrAlTi32-20 |
NCF 800 |
NA 15 |
ЭИ670 |
XH32T |
Incoloy 800H |
N08810 |
1.4958 / 1.4876 |
Z8NC33-21 |
X5NiCrAlTi31-20 |
NCF 800H |
NA 15(H) |
ЭИ670 |
XH32T |
Incoloy 800HT |
N08811 |
1.4859 / 1.4876 |
– |
X8NiCrAlTi32-21 |
NCF 800HT |
NA 15(HT) |
ЭИ670 |
XH32T |
Chemical Composition of Incoloy 800 Fasteners
Grade |
C |
Ni |
Cr |
Cu |
Fe |
Ti |
Mn |
Si |
S |
Al |
Incoloy 800 |
0.1 max |
30-35 |
19-23 |
0.75 max |
39.5 min |
0.15-0.60 |
1.5 max |
1.0 max |
0.015 max |
0.15-0.60 |
Incoloy 800H |
0.05-0.1 |
30-35 |
19-23 |
0.75 max |
39.5 min |
0.15-0.60 |
1.5 max |
1.0 max |
0.015 max |
0.15-0.60 |
Incoloy 800HT |
0.06-0.1 |
30-35 |
19-23 |
0.75 max |
39.5 min |
0.25-0.60 |
1.5 max |
1.0 max |
0.015 max |
0.85-1.20 |
Mechanical Properties of Incoloy 800 Fasteners
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
Incoloy 800 / 800H / 800HT |
7.94 g/cm3 |
1385 °C (2525 °F) |
Psi – 75,000 , MPa – 520 |
Psi – 30,000 , MPa – 205 |
30 % |
Types Of Incoloy 800 Fasteners
Incoloy 800 Heavy Hex Bolts

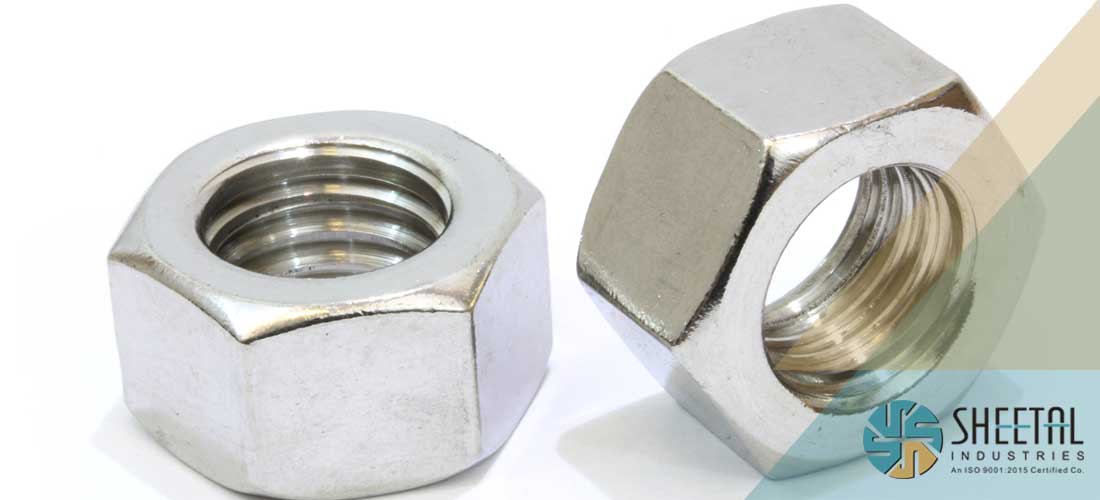

Incoloy Alloy 800HT Hex Nuts
Other Types Of Incoloy 800H Fasteners
- Incoloy Alloy 800 Fastener
- Alloy 800 Square Nuts
- UNS N08800 Fasteners
- Nickel Alloy 800 Fasteners
- Incoloy 800 Nut Bolt
- 1.4876 Fasteners
- 1.4958 Hex Head Bolts
- Inconel 800H Machine Screws
- ASTM B166 Incoloy 800 Washers
- Incoloy Alloy 800HT Bolts
- Incoloy 800 Nuts
- Incoloy® Alloy 800 Bolts and Nuts
- UNS N08810 Fasteners
- 800 Incoloy Fasteners
- Incoloy® Alloy 800 U Bolts
- Incoloy Alloy 800 Flat Washer
- Alloy 800 Hex Bolt
- 800 Incoloy Self Locking Nuts
- UNS N08811 Screw
- Incoloy® Alloy 800 Spring Washer
- Incoloy 800H Double Ended Studs
- Incoloy 800 Allen Cap Screw
- 800 Incoloy Wing Nuts
- 1.4859 Nuts And Bolts
- ASTM B166 Incoloy 800 Coupling Nuts
- Incoloy Alloy 800 U Bolts
- Incoloy 800 Industrial Fasteners
- Inconel 800 Heavy Hex Nuts
- Nickel Alloy 800HT Plain Washer
- Inconel 800H Ogee Washer
UNS N08800 Fasteners Price, Dimension, Weight
Incoloy 800 Fasteners Industrial Application
Power Generation Industry
