Raw Material Selection
The manufacturing process of buttweld fittings begins with the careful selection of raw materials.
Incoloy 800/800H/800HT Buttweld Fittings
- Home
- Products
- Buttweld Fittings
- Incoloy
- 800/800H/800HT

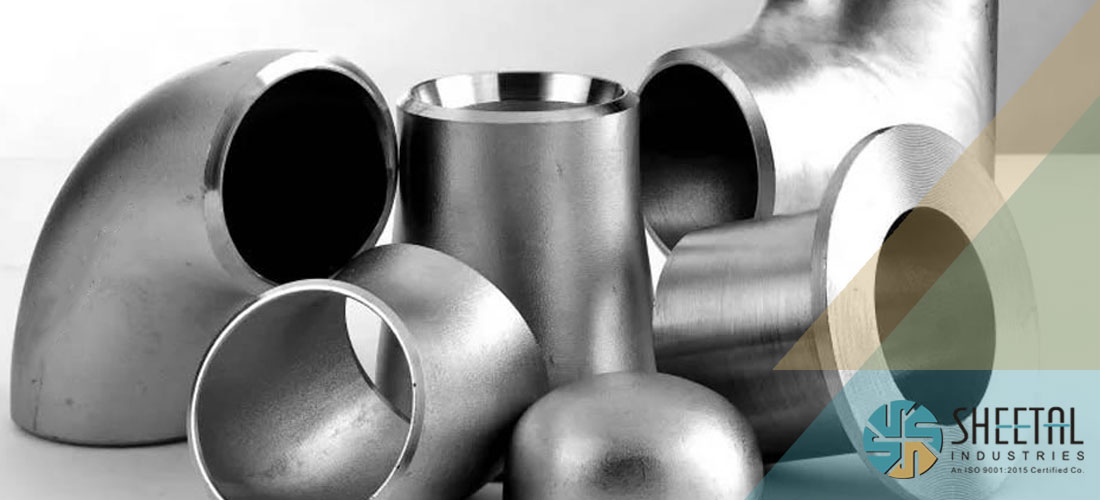

Incoloy 800, 800H, and 800HT Buttweld Fittings are high-quality pipe fittings made from Incoloy 800 series alloys. These nickel-iron-chromium alloys exhibit excellent corrosion resistance, high strength, and good weldability, making them suitable for use in harsh environments and demanding applications such as chemical processing, petrochemical, and power generation industries.
Incoloy 800 Buttweld Pipe Fittings resist various types of corrosion, including oxidation, carburization, and sulfur-containing atmospheres. Incoloy 800 series alloys have high mechanical strength and maintain their structural integrity even at elevated temperatures.Incoloy Alloyy 800H Pipe Fittings can be easily welded, allowing for convenient fabrication and installation of buttweld fittings. Incoloy 800 series buttweld fittings can withstand high temperatures, making them ideal for high-temperature applications. The availability of various types and sizes of fittings makes them suitable for a wide range of applications across different industries. The corrosion resistance and durability of Incoloy 800 series fittings reduce the need for frequent maintenance and replacement, leading to lower long-term costs.
Table Of Content
- Manufacturing Process Of Incoloy 800 Buttweld Fittings
- Specification Of Alloy 800H Butt Weld Fittings
- Incoloy 800HT Buttweld Fittings Equivalent Grades
- Chemical Composition of Alloy 800 Buttweld Fittings
- Mechanical Properties of Incoloy Alloy 800H Buttweld Fittings
- Types Of Incoloy 800HT Welded Fittings
- Other Types Of Incoloy 800 Seamless Fittings
- UNS N08800 Buttweld Fittings Price, Dimension, Weight
- Incoloy Alloy 800 Buttweld Fittings Industrial Application
- Export & Supply Destination of Incoloy Alloy 800 Buttweld Fittings
Our comprehensive range of Incoloy 800, 800H, and 800HT Buttweld Fittings caters to diverse industrial applications. From elbows and tees to reducers and caps, our fittings are available in various sizes, schedules, and configurations to meet your specific requirements. With their precise dimensions and excellent workmanship, these fittings ensure seamless integration into your existing piping systems, saving you time and effort during installation.
At Sheetal Industries, Our Incoloy 800, 800H, and 800HT Buttweld Fittings undergo stringent testing and inspection to ensure they meet or exceed international standards. Each fitting is accompanied by relevant certifications, providing you with the assurance of their quality, performance, and compliance with industry regulations.
Cutting and Shaping
Once the raw materials are selected, they undergo a precise cutting and shaping process.
Heating and Forming
Heating the materials to a specific temperature ensures they become malleable, facilitating the shaping process.
Welding and Joining
These processes ensure secure and leak-proof connections, enhancing the reliability and longevity.
Finishing and Quality Control
After this the buttweld fittings undergo comprehensive finishing and quality control procedures.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
| Specifications | ASTM B366 / ASME SB366 |
| Size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 Stainless Steel Buttweld Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D,
3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Key markets and industries |
Bitumen upgraders. Heavy oil refineries. Petrochemicals and acids. Nuclear power (mostly seamless). |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy® Alloy 800H 45 Degree Elbow
Incoloy® Alloy 800HT Long Radius Elbow
Incoloy Alloy 800 Short Radius Elbow
Incoloy Alloy 800H Concentric Reducer
Incoloy Alloy 800HT Eccentric Reducer
Nickel Alloy 800 Pipe Bend
Nickel Alloy 800H Tee
Incoloy 800HT Cross
Incoloy 800 Stub End
Incoloy 800H Pipe Cap
Incoloy Alloy 800HT Pipe Nipple
- UNS N08810 Buttweld Pipe Fittings
- Incoloy 800H Stub End
- Incoloy Alloy 800HT Seamless Pipe Elbow
- 1.4876 Seamless Fittings
- Incoloy Alloy 800 Pipe Fittings
- ASTM B366 Nickel Alloy 800H 45 Degree Elbow
- Incoloy Alloy 800HT Schedule 40 180° LR Return Bend
- Incoloy Alloy 800 90° Weldable SR Elbow
- Incoloy 800H Seamless Pipe Bend
- UNS N08811 Welded Fittings
- Incoloy Alloy 800HT Schedule 10 Two Joint Pipe Fittings
- 2 inch Incoloy Alloy 800 Pipe Fittings
- Incoloy Alloy 800HT Reducer
- Incoloy 800H Elbow
- UNS N08800 Buttweld Fittings
- ASTM B366 800H 45° Long Radius Elbow
- Incoloy Alloy 800HT 180 Degree Elbow
- Incoloy 800 U Bend
- Incoloy 800H SR Elbow
- ASME B16.9 Incoloy 800HT 1D Elbow
- ASME SB366 Nickel Alloy 800 Buttweld Cap
- Incoloy 800H Pipe End Cap
- Incoloy Alloy 800HT End Pipe Cap
- Incoloy 800H Reducing Tee
- Incoloy Alloy 800 Schedule 40 Pipe Reducer
- Incoloy Alloy 800H Weldable 3D Elbow
- Incoloy Alloy 800 Lap Joint Stub End
- 1.4958 Equal Cross
- Incoloy Alloy 800H Sch 10 Lateral Tee
- MSS-SP-75 Incoloy Alloy 800HT Buttweld Pipe Fittings
Ask Free Sample of Incoloy Alloy 800/800H/800HT Elbow, Tee, Reducer, Stub End Please Call On +91 9594327775 Or Mail Us On [email protected]
