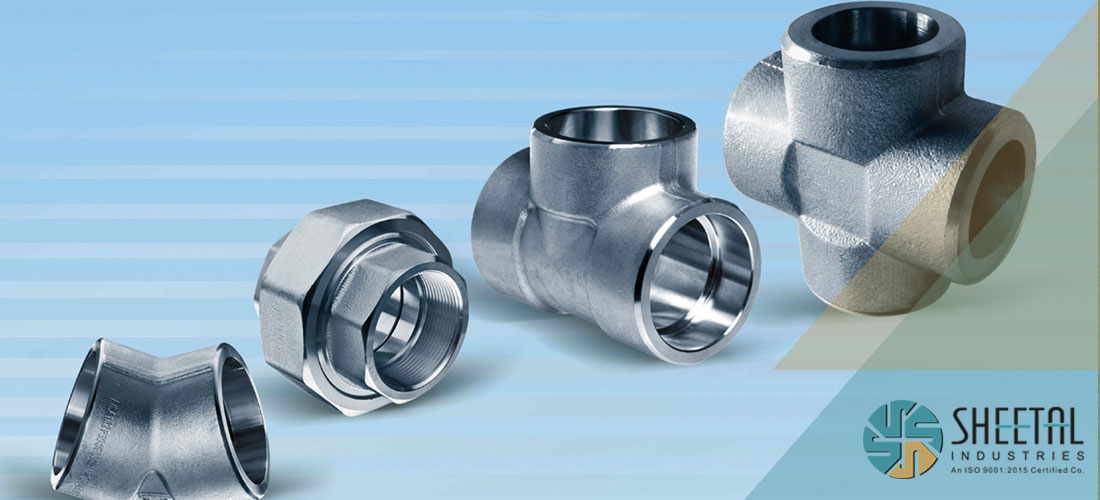

Hastelloy C22 Forged Fittings

Hastelloy C22 Forged Fittings

• What is Hastelloy C22 Forged Fitting?
Hastelloy C22 forged fittings are components used in piping systems that are made from Hastelloy C22 alloy using the forging process. Forging involves shaping the metal by applying compressive forces, resulting in fittings with enhanced strength and durability.

Hastelloy C22 is a high-performance nickel-chromium-molybdenum alloy known for its exceptional corrosion resistance in a wide range of corrosive environments.

• Why choose Hastelloy C22 forged fittings?
Hastelloy C22 forged fittings are chosen for their exceptional corrosion resistance, especially in aggressive chemical environments. They offer excellent resistance to various acids, including sulfuric acid, hydrochloric acid, and phosphoric acid. Hastelloy C22 forged fittings are widely used in industries such as chemical processing, petrochemicals, oil and gas, and pharmaceuticals.

• What are the properties of Hastelloy C22 Forged Fittings?
Hastelloy C22 Forged Fittings known for its excellent resistance to corrosion in a wide range of aggressive environments. Hastelloy C22 Forged Fittings, which are fittings made by forging Hastelloy C22 material, inherit these corrosion-resistant properties. Here are some of the key properties of Hastelloy C22 Forged Fittings:

1. Corrosion Resistance: Hastelloy C22 Forged Fittings exhibit exceptional resistance to a variety of corrosive media, including oxidizing and reducing environments. They are highly resistant to pitting, crevice corrosion, intergranular attack, and stress corrosion cracking.

2. Chemical Compatibility: These fittings offer excellent chemical resistance, making them suitable for use in applications involving acids, chlorides, solvents, seawater, and other aggressive chemicals. They can withstand corrosion in both oxidizing and reducing environments.

C22 Hastelloy Forged Fittings

3. High Strength: Hastelloy C22 Forged Fittings possess high tensile strength and good mechanical properties, allowing them to withstand high-pressure and high-temperature applications.

4. Temperature Resistance: These fittings offer excellent thermal stability and can maintain their corrosion resistance properties even at elevated temperatures. They can be used in environments with temperatures ranging from cryogenic to high-temperature applications.

5. Weldability: Hastelloy C22 Forged Fittings have good weldability and can be easily welded using commonly used welding methods. They can be joined to other components without compromising their corrosion resistance.

6. Longevity: Due to their exceptional resistance to corrosion and chemical attack, Hastelloy C22 Forged Fittings offer a long service life, reducing maintenance requirements and replacement costs.

Manufacturing Process Of Hastelloy C22 Forged Fittings

Specification Of Hastelloy® alloy C22 Forged Fittings

Specifications ASTM B564 / ASME SB564
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Hastelloy C22 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Chemical Composition of Hastelloy Alloy C22 Forged Fittings

Grade C Mn Si S Co Ni Cr Fe Mo P
Hastelloy C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Mechanical Properties of Hastelloy® C22 Forged Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %

Types Of Hastelloy C22 High Pressure Forged Fittings

C22 Hastelloy 90 Degree Forged Elbow

C22 Hastelloy 90 Degree Forged Elbow

C22 Hastelloy 45 Degree Forged Elbow

C22 Hastelloy 45 Degree Forged Elbow

C22 Hastelloy Full Coupling

C22 Hastelloy Full Coupling

C22 Hastelloy Half Coupling

C22 Hastelloy Half Coupling

C22 Hastelloy Forged Tee

C22 Hastelloy Forged Tee

C22 Hastelloy Forged Cross

C22 Hastelloy Forged Cross

Hastelloy C22 Threaded End Cap

Hastelloy C22 Threaded End Cap

C22 Hastelloy Threaded Union

C22 Hastelloy Threaded Union

Hastelloy C22 Bushing

Hastelloy C22 Bushing

Hastelloy C22 Street elbow

Hastelloy C22 Street elbow

Hastelloy C22 Plug

Hastelloy C22 Plug

Hastelloy C22 Barrel Nipple

Hastelloy C22 Barrel Nipple

Other Types Of Hastelloy C22 Forged Pipe Fittings

  • C22 Hastelloy Hex Head Plug
  • Hastelloy® alloy C22 Scoket weld Elbow
  • C-22 Hastelloy Socket Weld Fittings
  • C22 Hastelloy Screwed Fittings
  • C22 Hastelloy Couplings
  • Hastelloy C22 NPT Fittings
  • ASTM B564 C22 Hastelloy SW Fittings
  • Hastelloy® C22 High Pressure Forged Fittings
  • ASME B16.11 Hastelloy C22 90 Degree Threaded Elbow
  • C22 Hastelloy Hex Head Bushing
  • Alloy C-22 Threaded Fittings
  • Hastelloy C22 Threaded Elbow
  • Nickel Alloy C22 Threaded Fittings
  • UNS N06022 Forged Fittings
  • C22 Hastelloy Threaded Adapter
  • Hastelloy C22 Reducer Insert
  • C22 Hastelloy Class 6000 Socket Weld Fittings
  • Hastelloy C-22 1/2 SW Half Coupling
  • 2.4602 Forged Equal Cross
  • 4 Inch Hastelloy® C22 NPT Threaded Tee
  • Alloy C22 3000 LB Socket Weld Fittings
  • ASME SB564 C-22 Hastelloy Alloy Forged Cap
  • C22 Hastelloy Union
  • ASTM B564 Hastelloy C22 Threaded 45 Deg Elbow
  • C22 Hastelloy Forged Pipe Fittings
  • Hastelloy C-22 Welding Boss
  • Hastelloy Alloy C22 Reducing Coupling
  • Alloy C22 Threaded Pipe Nipple

Ask Free Sample of Hastelloy Alloy C22 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com
