Melting and Casting
Steel and alloying metals are loaded into an electric arc furnace. Once in the furnace, the metal is heated to a specific temperature above its melting point, usually in excess of 2800°F.
Hastelloy C22 Bars, Rods, Wires
How does Hastelloy C22 compare to other materials in terms of corrosion resistance?
Hastelloy C22 Bars, Rods, Wires is renowned for its exceptional corrosion resistance, which sets it apart from many other materials. Compared to stainless steel, nickel alloys, and even other Hastelloy grades, Hastelloy C22 exhibits superior resistance to various corrosive environments. It demonstrates remarkably oxidizing and reducing media resistance, including highly corrosive acids like sulfuric acid, hydrochloric acid, and nitric acid.
This material is highly resistant to pitting, crevice corrosion, and stress corrosion cracking, making it suitable for demanding applications in chemical processing, pharmaceutical manufacturing, and oil and gas industries. Its resistance to chloride-induced corrosion further enhances its usability in marine environments and chloride-rich solutions. Hastelloy C22 is an excellent choice for applications where corrosion resistance is paramount, offering long-term durability and reliability in challenging operating conditions.
Table Of Content
- Manufacturing Process Of Hastelloy C22 Bars
- Specification Of Hastelloy C22 Rods
- Hastelloy C22 Wires Equivalent Grades
- Chemical Composition of Hastelloy C22 Bars
- Mechanical Properties of Hastelloy C22 Bars
- Types Of Hastelloy C22 Bars, Rods, Wires
- Other Types Of Hastelloy C22 Rods
- UNS N06022 Bars Price, Dimension, Weight
- Hastelloy C22 Rods Industrial Application
- Export & Supply Destination of Hastelloy C22 Wires
What are the common applications and industries where Hastelloy C22 bars, rods, and wires are used?
Hastelloy C22 bars find extensive use in various industries and applications due to their exceptional properties. One of the primary industries where Hastelloy C22 bars are utilized is the chemical processing industry, particularly in environments with highly corrosive chemicals and acids. These bars are employed in constructing reactors, heat exchangers, and piping systems, where their superior corrosion resistance ensures reliable performance and extended service life.
Hastelloy C22 rods have diverse applications across several industries thanks to their exceptional characteristics and performance. The chemical processing industry is one prominent industry where Hastelloy C22 rods find extensive use. These rods are employed in constructing reaction vessels, columns, and pumps, where their superior corrosion resistance makes them well-suited for handling highly corrosive chemicals, acids, and reactive gases.

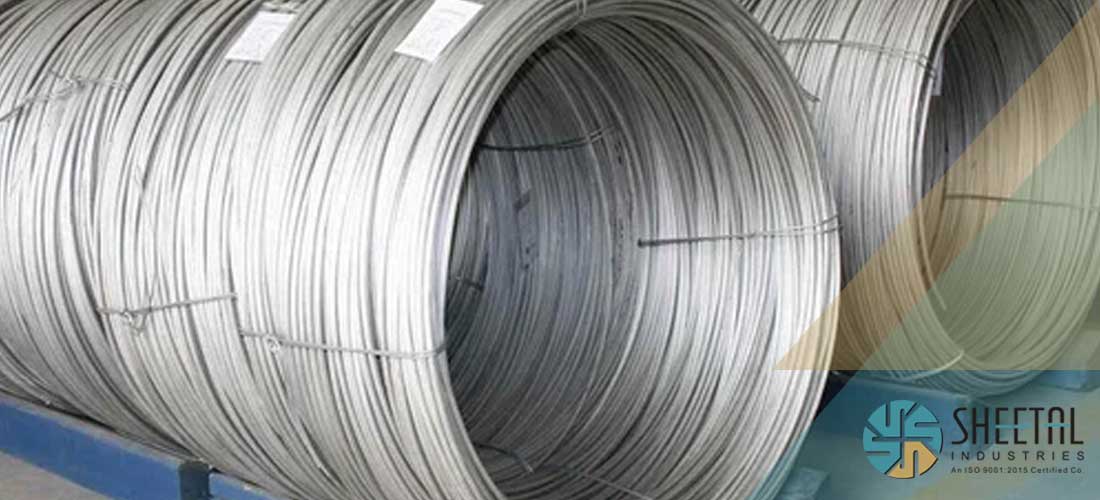

Hastelloy C22 wires are widely employed in various industries due to their excellent properties and versatility. Chemical processing is one of the primary industries where Hastelloy C22 wires find extensive use. These wires are utilized in constructing chemical reactors, vessels, and pipes, where their exceptional corrosion resistance ensures reliable performance and protection against corrosive chemicals, acids, and environments.
Forming
Most cast steel is formed by hot rolling—the slab, bloom, or billet is heated and passed through large rollers, stretching out the steel into a longer, thinner form.
Heat treatment
Heat treatment strengthens rolled stainless steel by recrystallizing the deformed microstructure. Most stainless steel is heat treated by annealing.
Descaling
A rolled piece of stainless steel acquires a layer of oxidized “mill scale,” which needs to be washed away to restore a shiny surface finish.
Cutting or Machining
Stainless steel is cut to a specified shape and size. The stainless steel can be sheared with circular knives, sawed with high-speed blades, or blanked with punches.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
| Standard | ASTM B574 / ASME SB574 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Wire Length | Cut Lengths: 0.125" to 72" No Limit on Spooled Lengths |
| Wires Diameter | 0.0004" to 0.040" 10 microns to 1.0 mm Other Sizes on Request |
| Wire Condition | M, Y, 1/2Hard |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Wire available in form of | Flat, Coil, mesh, Knitted wire mesh, spring, stranded and twisted |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
