Raw Material Selection
The manufacturing process of buttweld fittings begins with the careful selection of raw materials.

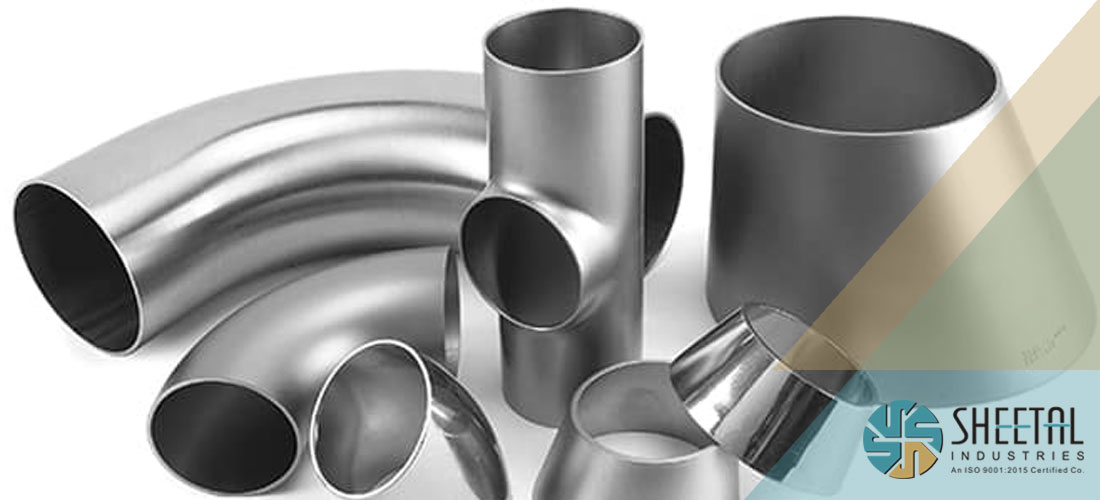

Duplex Steel UNS S32205 Buttweld Fittings
Sheetal Industries is a trusted manufacturer, stockist and distributor of Duplex Steel UNS S32205 Buttweld Fittings. These fittings are made to connect pipes and control flow in high pressure and corrosive environments. Made from Duplex 2205 (UNS S32205, WNR 1.4462) this grade of stainless steel combines the best qualities of austenitic and ferritic steels. It has 21–23% chromium, 4.5–6.5% nickel, 2.5–3.5% molybdenum and 0.14–0.20% nitrogen. This particular combination provides high corrosion resistance, particularly against stress corrosion cracking and pitting. Mechanical properties of high tensile strength of 800 MPa and yield strength of 550 MPa with 15% elongation make it durable and tough when put under pressure.
Table Of Content
- Manufacturing Process Of Duplex Steel UNS S32205 Buttweld Fittings
- Specification Of DSS S32205 Butt Weld Fittings
- Duplex Steel UNS S32205 Buttweld Fittings Equivalent Grades
- Chemical Composition of DSS S32205 Buttweld Fittings
- Mechanical Properties of DSS S32205 Buttweld Fittings
- Types Of Duplex S32205 Welded Fittings
- Other Types Of UNS S32205 Seamless Fittings
- UNS S32205 Buttweld Fittings Price, Dimension, Weight
- DSS S32205 Buttweld Fittings Industrial Application
- Export & Supply Destination of DSS S32205 Buttweld Fittings
These buttweld fittings find extensive application in industries where corrosion resistance and structural strength are very important. Typical applications are in petrochemical plants, offshore platforms, seawater systems, and desalination units. It is also crucial in chemical process plants, pharmaceutical units, and pressure containing equipment like pumps and valves. One of the most significant benefits of S32205 duplex stainless steel is that it is resistant to H₂S corrosion, or sour gas corrosion, and thus becomes suitable for oil and gas pipelines. We also manufacture fittings of similar kind in UNS S31803 Buttweld Fittings for variety of industrial applications.
Our Duplex Steel S32205 Buttweld Fittings are produced according to ASTM A815 / ASME SA815 standards. Available in sizes ranging from ½" NB to 24" NB they are available in seamless, welded, and fabricated types. These fittings possess a long lifespan, are convenient to install, and exhibit durability against wear and tear in harsh environments. They also exhibit structural stability even in temperatures and pressures beyond optimum levels, providing reliability and safety.
We ensure that every product is properly tested, certified, and securely packed to avoid damage during handling and shipping. Our fittings are available with all necessary compliance documents. For more details, specifications, or to request a quote, contact us today.
Cutting and Shaping
Once the raw materials are selected, they undergo a precise cutting and shaping process.
Heating and Forming
Heating the materials to a specific temperature ensures they become malleable, facilitating the shaping process.
Welding and Joining
These processes ensure secure and leak-proof connections, enhancing the reliability and longevity.
Finishing and Quality Control
After this the buttweld fittings undergo comprehensive finishing and quality control procedures.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
| Specifications | ASTM A815 / ASME SA815 |
| Size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A815 Stainless Steel Buttweld Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D,
3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Key markets and industries |
Bitumen upgraders. Heavy oil refineries. Petrochemicals and acids. Nuclear power (mostly seamless). |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex | 1.4462 | S32205 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Duplex S32205 45 Degree Elbow
Duplex S32205 Long Radius Elbow
Duplex Steel S32205 Short Radius Elbow
Duplex S32205 Concentric Reducer
Duplex Steel S32205 Eccentric Reducer
Duplex Stainless Steel S32205 Pipe Bend
Duplex Steel S32205 Tee
Duplex Steel S32205 Cross
Duplex Stainless Steel S32205 Stub End
Duplex S32205 Pipe Cap
DSS S32205 Pipe Nipple
- DSS S32205 Schedule 10 Two Joint Pipe Fittings
- Duplex Steel S32205 90° Weldable SR Elbow
- UNS S32205 Welded Fittings
- DSS S32205 Schedule 40 180° LR Return Bend
- DSS S32205 Seamless Pipe Elbow
- UNS S32205 Buttweld Fittings
- UNS S32205 Buttweld Pipe Fittings
- Duplex S32205 Stub End
- Duplex S32205 Elbow
- Duplex Stainless Steel S32205 Reducer
- ASTM A815 Duplex Steel S32205 45 Degree Elbow
- 1.4462 Seamless Fittings
- Duplex S32205 Seamless Pipe Bend
- 2 inch Duplex Stainless Steel S32205 Pipe Fittings
- Duplex S32205 Pipe Fittings
- DSS S32205 Sch 10 Lateral Tee
- UNS S32205 End Pipe Cap
- Duplex Steel S32205 U Bend
- Duplex Steel S32205 180 Degree Elbow
- Duplex Steel S32205 Weldable 3D Elbow
- DSS S32205 Schedule 40 Pipe Reducer
- Duplex S32205 SR Elbow
- ASTM A815 S32205 45° Long Radius Elbow
- ASME B16.9 Duplex Steel S32205 1D Elbow
- Duplex Stainless Steel S32205 Lap Joint Stub End
- Duplex UNS S32205 Pipe End Cap
- 1.4462 Equal Cross
- ASME SA815 Duplex Stainless Steel S32205 Buttweld Cap
- Duplex UNS S32205 Reducing Tee
- MSS-SP-75 DSS S32205 Buttweld Pipe Fittings
