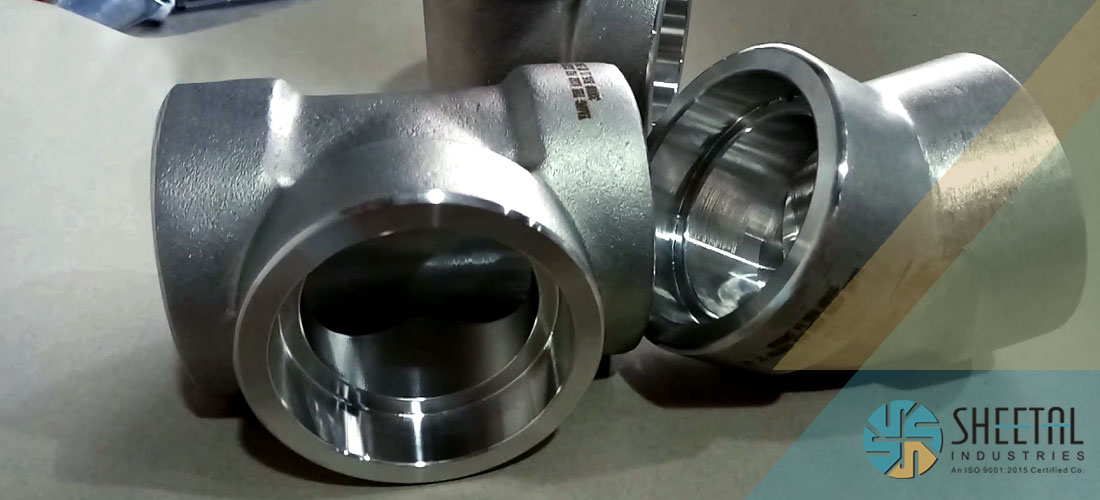

Duplex Steel S31803 Forged Fittings

Duplex Steel S31803 Forged Fittings

What are Duplex Steel UNS S31803 forged fittings?
Duplex Steel UNS S31803 forged fittings are components made from Duplex Steel UNS S31803 using a forging process. These fittings are designed to connect pipes or other equipment in piping systems and provide a strong and leak-proof connection.

What are the advantages of using Duplex Steel UNS S31803 forged fittings?
Duplex Steel UNS S31803 forged fittings offer several advantages, including: • Excellent resistance to corrosion, including stress corrosion cracking and pitting. • High strength and toughness, which allows for reliable performance in demanding environments. • Good weldability, allowing for ease of installation and repair. • Enhanced durability and longevity, reducing maintenance and replacement costs.

What types of forged fittings are available in Duplex Steel UNS S31803?
Duplex Steel UNS S31803 forged fittings are available in various types, including:
• Socket Weld fittings: These fittings have a socket-like end for pipe insertion and are secured by fillet welding.
• Threaded fittings: These fittings have male or female threads for connection and are screwed onto the pipes or equipment.
• Weldolet and Sockolet fittings: These fittings are designed to create branch connections in pipelines and are welded onto the main pipe.

What applications are Duplex Steel UNS S31803 forged fittings suitable for?
Duplex Steel UNS S31803 forged fittings are widely used in industries such as oil and gas, petrochemical, chemical processing, offshore, and marine. They are commonly used in piping systems for conveying fluids, such as water, oil, gas, and chemicals.

S31803 Duplex Steel Forged Fittings

What are the standard specifications for Duplex Steel UNS S31803 forged fittings?
The standard specifications for Duplex Steel UNS S31803 forged fittings may vary depending on the manufacturer or industry requirements. However, common specifications include ASTM A182 and ASME B16.11.

What are the available sizes and pressure ratings for Duplex Steel UNS S31803 forged fittings?
Duplex Steel UNS S31803 forged fittings are available in a range of sizes, typically ranging from 1/8" to 4" (DN6 to DN100). The pressure ratings of these fittings depend on the type and dimensions, but commonly range from 3000 to 9000 pounds per square inch (psi).

Manufacturing Process Of Duplex Steel S31803 Forged Fittings

Specification Of Duplex S31803 Forged Fittings

Specifications ASTM A182 / ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Duplex Steel S31803 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Duplex 2205 1.4462 S31803

Chemical Composition of Duplex Stainless Steel S31803 Forged Fittings

Grade C Mn Si P S Cr Mo Ni N Fe
S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min

Mechanical Properties of DSS S31803 Forged Fittings

GradesDensity (g/cm 3)Density (lb/in 3)Melting Point (°C)Melting Point (°F)
S318037.8050.2851420 – 14652588 – 2669

Types Of Duplex Steel S31803 High Pressure Forged Fittings

S31803 DSS 90 Degree Forged Elbow

S31803 DSS 90 Degree Forged Elbow

S31803 DSS 45 Degree Forged Elbow

S31803 DSS 45 Degree Forged Elbow

S31803 Duplex Steel Full Coupling

S31803 DSS Full Coupling

S31803 Duplex Steel Half Coupling

S31803 Duplex Steel Half Coupling

S31803 Duplex Steel Forged Tee

S31803 Duplex Steel Forged Tee

S31803 Duplex Steel Forged Cross

S31803 Duplex Steel Forged Cross

DSS S31803 Threaded End Cap

DSS S31803 Threaded End Cap

S31803 Duplex Steel Threaded Union

S31803 Duplex Steel Threaded Union

Duplex Steel S31803 Bushing

Duplex Steel S31803 Bushing

Duplex Steel S31803 Street elbow

Duplex Steel S31803 Street elbow

Duplex Steel S31803 Plug

Duplex Steel S31803 Plug

DSS S31803 Barrel Nipple

DSS S31803 Barrel Nipple

Other Types Of Duplex Steel S31803 Forged Pipe Fittings

  • ASTM A182 S31803 Duplex Steel SW Fittings
  • ASME B16.11 DSS S31803 90 Degree Threaded Elbow
  • Duplex Steel S31803 Threaded Elbow
  • S31803 Duplex Steel Hex Head Bushing
  • S31803 Duplex Steel Socket Weld Fittings
  • DSS S31803 High Pressure Forged Fittings
  • S31803 Duplex Steel Threaded Fittings
  • UNS S31803 Forged Fittings
  • Duplex Stainless Steel S31803 Reducing Coupling
  • S31803 Duplex Steel Screwed Fittings
  • Duplex S31803 Threaded Fittings
  • Duplex S31803 Scoket weld Elbow
  • S31803 Duplex Steel Hex Head Plug
  • Duplex Steel S31803 NPT Fittings
  • Duplex Steel S31803 Welding Boss
  • Duplex Stainless Steel S31803 Threaded Pipe Nipple
  • S31803 Duplex Steel Couplings
  • ASTM A182 Duplex S31803 Threaded 45 Deg Elbow
  • ASME SA182 S31803 Duplex Steel Forged Cap
  • Duplex Steel S31803 1/2 SW Half Coupling
  • S31803 DSS Class 6000 Socket Weld Fittings
  • DSS S31803 3000 LB Socket Weld Fittings
  • S31803 Duplex Steel Forged Pipe Fittings
  • 4 Inch Duplex S31803 NPT Threaded Tee
  • S31803 Duplex Steel Threaded Adapter
  • Duplex Steel S31803 Reducer Insert
  • 1.4462 Forged Equal Cross
  • S31803 Duplex Stainless Steel Union
