Melting and Casting
Steel and alloying metals are loaded into an electric arc furnace. Once in the furnace, the metal is heated to a specific temperature above its melting point, usually in excess of 2800°F.
Duplex Steel S31803 Bars, Rods, Wires
What is the composition of Duplex UNS S31803 bars, rods, and wires?
Duplex UNS S31803 Bars, Rods, and Wires are made from a stainless steel alloy with a balanced composition of austenite and ferrite phases. The composition typically comprises approximately 22% chromium, 5-6% nickel, 3% molybdenum, and small amounts of other elements such as nitrogen and manganese. This alloy composition imparts remarkable corrosion resistance, high strength, and excellent toughness to the bars, rods, and wires. The presence of chromium provides resistance against various corrosive environments, including acids, chloride ions, and stress corrosion cracking.
Table Of Content
- Manufacturing Process Of Duplex Steel S31803 Bars
- Specification Of Duplex Steel S31803 Rods
- Duplex Steel S31803 Wires Equivalent Grades
- Chemical Composition of Duplex S31803 Bars
- Mechanical Properties of Duplex Steel S31803 Bars
- Types Of Duplex Steel S31803 Bars, Rods, Wires
- Other Types Of Duplex Steel S31803 Rods
- UNS S31803 Bars Price, Dimension, Weight
- S31803 Duplex Steel Rods Industrial Application
- Export & Supply Destination of Duplex Steel S31803 Wires
What are the key properties and characteristics of Duplex UNS S31803 bars, rods, and wires?
Duplex UNS S31803 bars exhibit several key properties and characteristics that make them highly desirable for various applications. They possess excellent corrosion resistance, attributed to their dual-phase microstructure consisting of austenite and ferrite. This composition offers superior resistance to localized corrosion, including pitting and crevice corrosion, making the bars well-suited for environments containing chlorides, acids, and other corrosive substances.
Duplex UNS S31803 rods possess a range of key properties and characteristics that make them highly advantageous for various applications. One of their notable features is their exceptional corrosion resistance. Thanks to their dual-phase microstructure comprising austenite and ferrite, these rods exhibit excellent resistance to localized corrosion, including pitting and crevice corrosion. They are particularly well-suited for environments containing chlorides, acids, and other corrosive substances. Another important property of Duplex UNS S31803 rods is their high strength.
Duplex UNS S31803 wires possess key properties and characteristics that make them highly advantageous for various applications. One of their prominent features is their excellent corrosion resistance. The dual-phase microstructure, consisting of austenite and ferrite, offers these wires exceptional resistance to localized corrosion, including pitting and crevice corrosion. They exhibit remarkable durability and reliability in environments containing chlorides, acids, and other corrosive substances.
Forming
Most cast steel is formed by hot rolling—the slab, bloom, or billet is heated and passed through large rollers, stretching out the steel into a longer, thinner form.
Heat treatment
Heat treatment strengthens rolled stainless steel by recrystallizing the deformed microstructure. Most stainless steel is heat treated by annealing.
Descaling
A rolled piece of stainless steel acquires a layer of oxidized “mill scale,” which needs to be washed away to restore a shiny surface finish.
Cutting or Machining
Stainless steel is cut to a specified shape and size. The stainless steel can be sheared with circular knives, sawed with high-speed blades, or blanked with punches.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful packaging techniques.
| Standard | ASTM A276 / A479, ASME SA276 / A479 ASTM A580 ASME SA580 / ASTM A313 ASME SA313, AMS 5514 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Wire Length | Cut Lengths: 0.125" to 72" No Limit on Spooled Lengths |
| Wires Diameter | 0.0004" to 0.040" 10 microns to 1.0 mm Other Sizes on Request |
| Wire Condition | M, Y, 1/2Hard |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Duplex Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Wire available in form of | Flat, Coil, mesh, Knitted wire mesh, spring, stranded and twisted |
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex S31803 | S31803 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S31803 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Duplex S31803 Rods
Duplex Steel S31803 Wire Rope
Duplex Steel S31803 Square Bars
S31803 Duplex Steel Wire Mesh

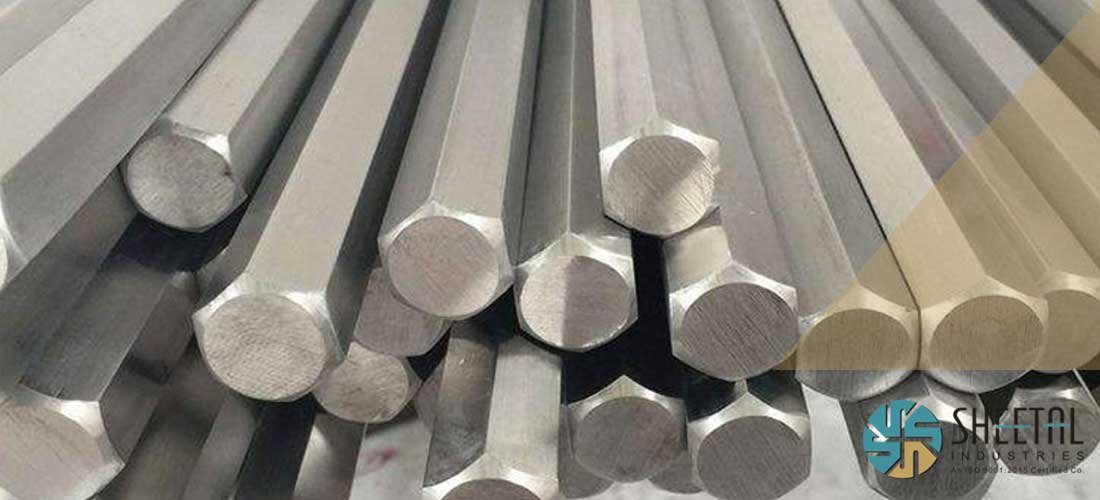

Duplex S31803 Hexagonal Bar
