Cupro Nickel 90/10 Forged Fittings

Cupro Nickel 90/10 Forged Fittings

1. What are Cupro Nickel 90/10 forged fittings and why are they used?
Cupro Nickel 90/10 forged fittings are pipe fittings made from an alloy containing 90% copper and 10% nickel, along with other elements like iron and manganese. They are used for their excellent corrosion resistance, especially in seawater applications, as well as their good thermal conductivity and strength.

2. In which industries are Cupro Nickel 90/10 forged fittings commonly used?
Cupro Nickel 90/10 forged fittings are widely used in industries that require corrosion-resistant materials, such as marine engineering, shipbuilding, power generation, desalination plants, and heat exchanger systems. They are particularly suitable for applications involving saltwater and brackish water.

3. What types of Cupro Nickel 90/10 forged fittings are available?
Cupro Nickel 90/10 forged fittings come in various types, including elbows, tees, reducers, couplings, caps, unions, and plugs. They are available in different sizes, pressure ratings, and configurations, such as socket weld, threaded, and butt weld, to meet specific application requirements.

4. How do Cupro Nickel 90/10 forged fittings compare to other materials in terms of corrosion resistance?
Cupro Nickel 90/10 offers superior corrosion resistance compared to most other materials, particularly in marine and saltwater environments. Its unique alloy composition provides excellent resistance to stress corrosion cracking, pitting, and crevice corrosion.

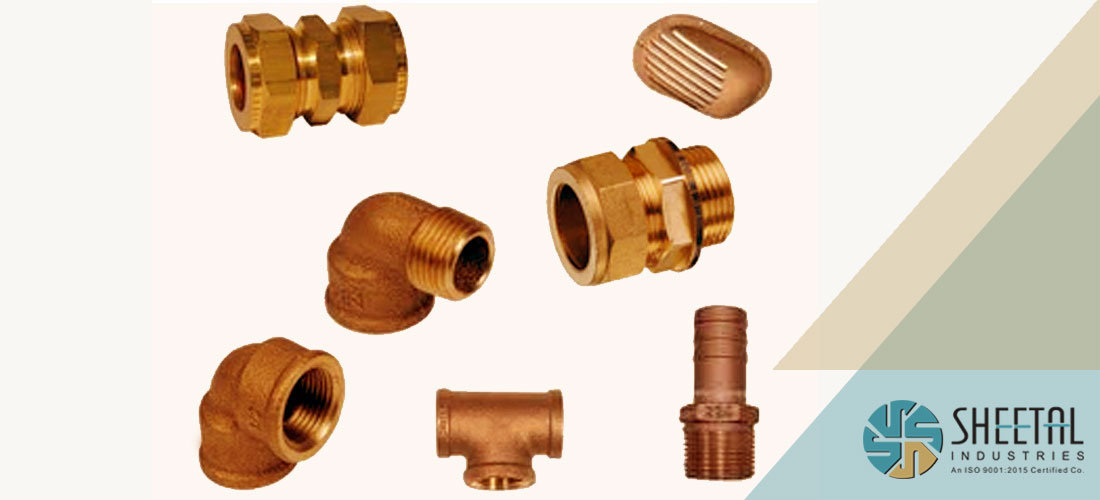

90/10 Cupro Nickel Forged Fittings

5. Can Cupro Nickel 90/10 forged fittings be used in high-temperature applications?
Yes, Cupro Nickel 90/10 forged fittings can be used in high-temperature applications, typically up to 600°F (315°C). They maintain their mechanical properties and corrosion resistance even under extreme temperature conditions, making them suitable for various high-temperature applications.

6. Are Cupro Nickel 90/10 forged fittings compatible with other materials?
Cupro Nickel 90/10 forged fittings are generally compatible with other materials, including stainless steel, brass, and bronze. However, it is essential to consider the specific application and environmental conditions when selecting compatible materials to ensure optimal performance and prevent galvanic corrosion.

Manufacturing Process Of Cupro Nickel 90/10 Forged Fittings

Specification Of Cu-Ni 90/10 Forged Fittings

Specifications ASTM / ASME
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Cupro Nickel 90/10 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Copper Nickel 90/10 2.0872 C70600

Chemical Composition of Copper Nickel 90/10 Forged Fittings

Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 90-10 88.6 min 1.0 max .05 max 9-11 max 1.8 max 1 max

Mechanical Properties of CuNi 90/10 Forged Fittings

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Copper Nickel 90-10 0.323 lb/in3 at 68 F 2260 F 50000 psi 20000 psi 30 %

Types Of Cupro Nickel 90/10 High Pressure Forged Fittings

90/10 Cupro Nickel 90 Degree Forged Elbow

90/10 Cupro Nickel 90 Degree Forged Elbow

90/10 Cupro Nickel 45 Degree Forged Elbow

90/10 Cupro Nickel 45 Degree Forged Elbow

90/10 Cupro Nickel Full Coupling

90/10 Cupro Nickel Full Coupling

90/10 Cupro Nickel Half Coupling

90/10 Cupro Nickel Half Coupling

90/10 Cupro Nickel Forged Tee

90/10 Cupro Nickel Forged Tee

90/10 Cupro Nickel Forged Cross

90/10 Cupro Nickel Forged Cross

90/10 Cupro Nickel Threaded Union

90/10 Cupro Nickel Threaded Union

Cupro Nickel 90/10 Bushing

Cupro Nickel 90/10 Bushing

Cupro Nickel 90/10 Street elbow

Cupro Nickel 90/10 Street elbow

Other Types Of Cupro Nickel 90/10 Forged Pipe Fittings

  • CuNi 90/10 High Pressure Forged Fittings
  • Cu-Ni 90/10 Scoket weld Elbow
  • Cupro Nickel 90/10 Threaded Elbow
  • 90/10 Cupro Nickel Couplings
  • 90/10 Copper Nickel Hex Head Bushing
  • Copper Nickel 90-10 Threaded Fittings
  • Cu Ni 90/10 Threaded Fittings
  • 90/10 Cupro Nickel SW Fittings
  • 90/10 Cupro Nickel Hex Head Plug
  • Copper Nickel 90/10 NPT Fittings
  • UNS C70600 Forged Fittings
  • ASME B16.11 Copper Nickel 90/10 90 Degree Threaded Elbow
  • 90/10 Cupro Nickel Screwed Fittings
  • 90-10 Cupro Nickel Socket Weld Fittings
  • 90-10 Cupro Nickel Threaded End Cap
  • 90-10 Cupro Nickel Plug
  • 90/10 Copper Nickel Threaded Adapter
  • 90/10 Cupro Nickel Class 6000 Socket Weld Fittings
  • 90-10 Copper Nickel Forged Cap
  • 90/10 Cupro Nickel Union
  • Copper Nickel 90/10 Reducing Coupling
  • 4 Inch CuNi 90/10 NPT Threaded Tee
  • Cupro Nickel 90-10 Welding Boss
  • Cu Ni 90/10 Threaded Pipe Nipple
  • 90-10 Cupro Nickel Barrel Nipple
  • Copper Nickel 90-10 1/2 SW Half Coupling
  • 90/10 Cupro Nickel Forged Pipe Fittings
  • Cupro Nickel 90/10 Threaded 45 Deg Elbow
  • 2.0872 Forged Equal Cross
  • Copper Nickel 90/10 Reducer Insert
  • Cu-Ni 90/10 3000 LB Socket Weld Fittings

Ask Free Sample of Copper Nickel 90/10 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com
