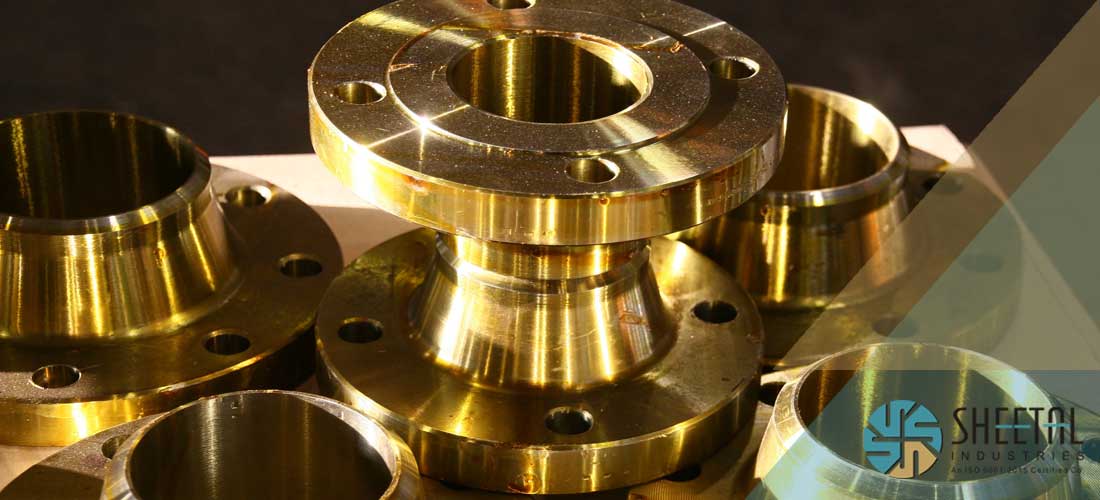

Aluminium bronze C63000
Flanges are a type of industrial component used in various applications
that require high strength, corrosion resistance, and durability. These flanges are made
from a specific type of bronze alloy, C63000, which contains a combination of copper (Cu),
aluminum (Al), iron (Fe), and nickel (Ni). The resulting alloy exhibits excellent mechanical
properties and is well-suited for a wide range of industries.
One of the primary advantages of C63000 aluminium bronze flanges is their
exceptional corrosion resistance. This makes them ideal for applications in marine
environments or any setting where exposure to moisture, saltwater, or corrosive chemicals is
a concern. They can withstand harsh conditions and are resistant to both general corrosion
and pitting, ensuring a long service life and reducing maintenance costs.
C63000 aluminium bronze flanges also offer impressive mechanical properties. They have high
tensile strength, making them suitable for heavy-duty applications. The alloy's excellent
wear resistance and ability to withstand abrasive conditions make it an excellent choice for
components subject to friction and wear, such as pumps, valves, and marine equipment.
These flanges are versatile and can be used in various industries, including the oil and gas,
marine, and chemical processing sectors. They are commonly used to connect pipes, valves,
and other equipment in piping systems, ensuring leak-free and secure connections. The C63000
alloy provides superior galling resistance, preventing damage or deformation during assembly
and disassembly.
In addition to their corrosion resistance and mechanical properties, C63000 aluminium
bronze flanges are known for their thermal conductivity and electrical
conductivity, making them suitable for applications where heat dissipation and electrical
conduction are important. This property is particularly valuable in the electrical and
electronics industries.
Manufacturing Process Of Aluminium Bronze C63000 Flanges
Raw Material Selection
The manufacturing process of flanges begins with the careful selection of
raw materials.
Cutting and Shaping
Once the raw materials are selected, they undergo a precise cutting and
shaping process.
Finishings and Coatings
Coating the materials to a specific temperature ensures they become
malleable, facilitating the shaping process.
Welding and Joining
These processes ensure secure and leak-proof connections, enhancing the
reliability and longevity.
Finishing and Quality Control
After this the buttweld fittings undergo comprehensive finishing and
quality control procedures.
Packaging and Delivery
To reach their destination in pristine condition, we employ careful
packaging techniques.
Specification Of Aluminium Bronze C63000 Flanges
Dimension |
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092,
DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST
Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220,
BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Flanges Size |
1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
Flange Face Type |
Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female
(LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large
Tongue & Groove, Groove |
Pressure Class |
PN 2.5 TO PN 400 |
Pressure Rating ANSI |
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
Pressure Calculation in DIN |
6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
Table |
D, E, F, H |
Types |
Forged / Threaded / Screwed / Plate |
Form |
Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank
Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange,
Lapped Pipe End Flange. |
Flanges Marking |
All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or
according to the customer’s request.) |
Chemical Composition of Aluminium Bronze C63000 Flanges
|
Al |
Cu |
Fe |
Mn |
Ni |
Si |
Sn |
Zn |
Min/Max |
9.0 - 11.0 |
Rem |
2.0 - 4.0 |
1.5 |
4.0 - 5.5 |
0.25 |
0.2 |
0.3 |
Nominals |
10.0000 |
82.0000 |
3.0000 |
- |
5.0000 |
- |
- |
- |
Mechanical Properties of Aluminium Bronze C 63000 Flanges
Material |
Diameter |
Tensile Strength ksi |
Yield Strength ksi |
Elongation 4D % |
Hardness HB |
AMS 4640 Annealed Bar |
<1.0" |
110 |
68 |
10 |
201-248 |
AMS 4640 Annealed Bar |
1.0" - 2.0" |
110 |
60 |
10 |
201-248 |
AMS 4640 Annealed Bar |
2.0" - 3.0" |
105 |
55 |
10 |
187-241 |
AMS 4640 Annealed Bar |
3.0" - 5.0" |
100 |
50 |
10 |
187-241 |
Types Of Aluminium Bronze C63000 Flanges
Aluminium Bronze C63000 Slip-On Flanges
Aluminium Bronze C 63000 Weld Neck Flanges
Aluminum Bronze C63000 Blind Flange
C63000 Aluminium Bronze Socket Weld Flange
Bronze Alloy C63000 Ring Type Joint Flange
Aluminium Bronze C63000 Threaded Flanges
Aluminium Bronze C63000 Forged Flange
Aluminum Bronze C 63000 Lap Joint Flange
Aluminium Bronze C63000 Flat Face Flange
Other Types Of Aluminium Bronze C63000 Flanges
- C63000 Aluminum Bronze Threaded Flanges
- Aluminium Bronze C63000 Blind Flanges
- Aluminum Bronze Grade C63000 Forged Flanges
- Aluminium Bronze C 63000 Slip On Flanges
- Aluminium Bronze C 63000 Weld Neck Flanges
- Bronze Alloy C63000 Socket Weld Flanges
- Bronze Alloy Grade C63000 Plate Flanges
- Bronze Alloy C63000 Lap Joint Flanges
- Aluminium Bronze C63000 Loose Flanges
- C63000 Aluminium Bronze Long Weld Neck Flanges
- Aluminium Bronze C63000 Pipe Flanges
- Aluminium Bronze C63000 Ring Type Joint Flanges
- Aluminum Bronze C63000 Blind Flange
- ASME B16.5 Bronze Alloy C63000 BLRF Flanges
- Aluminium Bronze C63000 SORF Flanges
- C 63000 Aluminium Bronze Alloy PN 10 Flange
- Aluminium Bronze C63000 Welding Neck Flange
- C63000 Aluminium Bronze SWRF Flange
- Aluminium Bronze C 63000 Ring Type Joint Flanges
- Aluminium Bronze Alloy C63000 Slip on Flanges
- Grade C63000 Aluminum Bronze Screwed Flanges
- Aluminium Bronze Grade C 63000 RTJ Flanges
- Bronze Alloy C63000 Flat Face Flanges
- C63000 Aluminium Bronze Socket weld Flanges
