Alloy Steel F9 Forged Fittings

Alloy Steel F9 Forged Fittings

Alloy Steel F9 Forged Fittings are essential components in various industrial applications where durability, strength, and resistance to corrosion and high temperatures are crucial. These fittings are crafted from a high-quality alloy steel F9 material, offering a combination of superior mechanical properties and resistance to environmental factors. In this brief overview, we'll delve into the key features and benefits of these fittings.

Key Features:
1. Material: Alloy Steel F9 is a low-alloy steel known for its exceptional mechanical properties. It contains elements like chromium, molybdenum, and vanadium, which contribute to its high tensile strength and excellent corrosion resistance.
2. Durability: These forged fittings are designed to withstand harsh operating conditions, making them ideal for industries such as oil and gas, chemical processing, and power generation.
3. Corrosion Resistance: Alloy Steel F9 Forged Fittings offer outstanding resistance to both corrosion and oxidation, ensuring a longer service life even in aggressive environments.
4. High Temperature Performance: The material's ability to maintain its mechanical properties at elevated temperatures makes it suitable for applications involving heat, such as steam lines and high-temperature processing.

Types of Fittings:
Alloy Steel F9 Forged Fittings are available in various types, including:
1. Elbows: Used to change the direction of pipelines, these fittings come in different angles, such as 90 degrees and 45 degrees.
2. Tees: Tees allow the connection of three pipes, facilitating the creation of branch lines in a pipeline.
3. Couplings: These fittings join two pipes of the same diameter.
4. Crosses: Cross fittings are employed in four-way connections.
5. Caps: Caps are used to close the end of a pipe, providing protection and sealing.

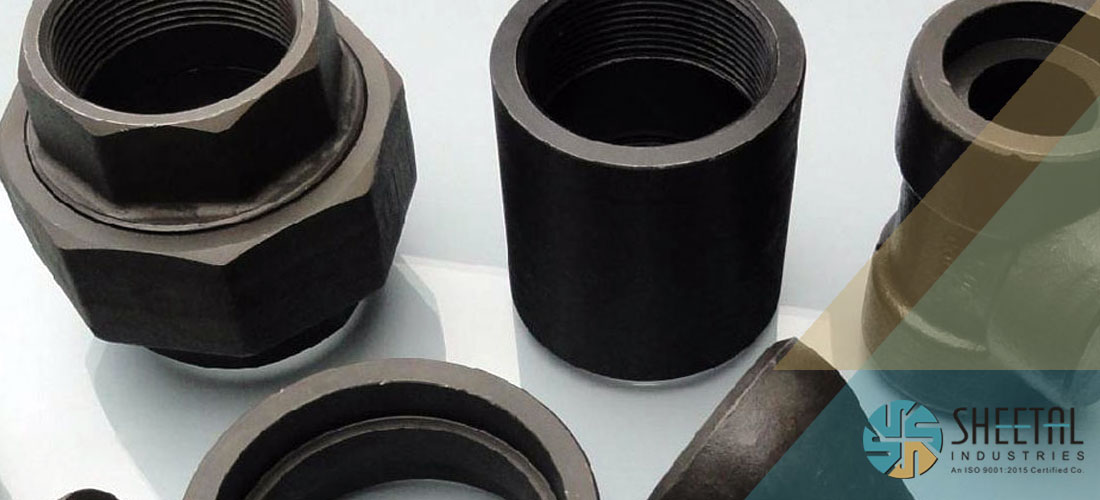

F9 Alloy Steel Forged Fittings

Advantages:
• High Strength: Alloy Steel F9 Forged Fittings offer impressive tensile and yield strengths, ensuring structural integrity.
• Longevity: The corrosion resistance and robust nature of these fittings contribute to their long service life.
• Versatility: These fittings are suitable for a wide range of applications, including petrochemical, power generation, and industrial processes.
• Ease of Installation: The forged design allows for easy installation and modification, reducing downtime during maintenance.

Applications:
Alloy Steel F9 Forged Fittings find applications in industries such as:
• Oil and Gas: Used in pipelines, drilling, and refining operations.
• Chemical Processing: For handling corrosive chemicals.
• Power Generation: In high-temperature and high-pressure steam systems.
• Aerospace: In critical components requiring both strength and heat resistance.

Manufacturing Process Of Alloy Steel F9 Forged Fittings

Specification Of Chrome Moly F9 Forged Fittings

Specifications ASTM A182 / ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process Forge, Cast, Push, Press, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple

Alloy Steel F9 Forged Fittings Equivalent Grades

STANDARD UNS WERKSTOFF NR. Trade Name
Alloy Steel F9 K90941 1.7386 9Cr-1Mo

Chemical Composition of Chromium Molybdenum Steel F9 Forged Fittings

Grade C Mn Si P S Cr Mo
Alloy Steel F9 0.15 max 0.3-0.6 0.5 - 1 0.03 0.03 8 - 10 0.9 - 1.1

Mechanical Properties of Cr Mo F9 Forged Fittings

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min
Alloy Steel F9 380 585 20

Types Of Cr-Mo F9 High Pressure Forged Fittings

F9 Alloy Steel 90 Degree Forged Elbow

F9 Alloy Steel 90 Degree Forged Elbow

F9 Alloy Steel 45 Degree Forged Elbow

F9 Alloy Steel 45 Degree Forged Elbow

F9 Alloy Steel Full Coupling

F9 Alloy Steel Full Coupling

F9 Alloy Steel Half Coupling

F9 Alloy Steel Half Coupling

F9 Alloy Steel Forged Tee

F9 Alloy Steel Forged Tee

F9 Alloy Steel Forged Cross

F9 Alloy Steel Forged Cross

Alloy Steel F9 Threaded End Cap

Alloy Steel F9 Threaded End Cap

F9 Alloy Steel Threaded Union

F9 Alloy Steel Threaded Union

Alloy Steel F9 Bushing

Alloy Steel F9 Bushing

Alloy Steel F9 Street elbow

Alloy Steel F9 Street elbow

Alloy Steel F9 Plug

Alloy Steel F9 Plug

Alloy Steel F9 Barrel Nipple

Alloy Steel F9 Barrel Nipple

Other Types Of Alloy Steel F9 Forged Pipe Fittings

  • Chrome Moly Steel F9 Scoket weld Elbow
  • F9 Alloy Steel Socket Weld Fittings
  • ASME B16.11 Alloy Steel F9 90 Degree Threaded Elbow
  • F9 Alloy Steel Hex Head Plug
  • Alloy Steel F9 NPT Fittings
  • F9 Alloy Steel Hex Head Bushing
  • CrMo F9 Threaded Fittings
  • Cr-Mo F9 High Pressure Forged Fittings
  • Alloy F9 Threaded Fittings
  • F9 Alloy Steel Couplings
  • UNS K90941 Forged Fittings
  • F9 Alloy Steel Screwed Fittings
  • Alloy Steel F9 Threaded Elbow
  • ASTM A182 F9 Alloy Steel SW Fittings
  • CrMo F9 Reducing Coupling
  • F9 Alloy Steel Threaded Adapter
  • F9 Alloy Steel Union
  • ASTM A182 Alloy Steel F9 Threaded 45 Deg Elbow
  • F9 Alloy Steel Class 6000 Socket Weld Fittings
  • Alloy Steel F9 Reducer Insert
  • Alloy Steel F9 1/2 SW Half Coupling
  • 1.7386 Forged Equal Cross
  • 4 Inch Cr-Mo F9 NPT Threaded Tee
  • Chromium Molybdenum F9 Threaded Pipe Nipple
  • Alloy Steel F9 Welding Boss
  • ASME SA182 F9 Alloy Steel Forged Cap
  • F9 Alloy Steel Forged Pipe Fittings
  • Chrome Moly F9 3000 LB Socket Weld Fittings

Ask Free Sample of CrMo F9 Forged Elbow, Tee, Coupling, Union, Bushing Please Call On   +91 9594327775 Or Mail Us On subhash@sheetalindustries.com
